- Introduction
1.1 Conservation Planning
Information System (CONPLAN)
District/sub-district
level planning, with emphasis on conservation management of the
rural areas, have been stressed for many years in the successive
National Development Plans. However, planning is meaningful only
when the natural resources are seen in its spatial perspective,
distributed over an area. Hence, it is imperative to generate
and document a well organized spatial/non-spatial database of
the district as a whole for macro-level planning and at block/watershed
resolution for micro-level planning, which would in turn be useful
in planning the conservation/watershed management programmes
for sustainable development.
In modern
times, the information has been supplemented through Remote Sensing
and GIS and has been used to reduce the information gaps.
1.2 Spatial
Decision Support System for rural Land Use Planning
(SDSS/LUP)
In recent
years in India, there has been a blossoming of participatory
planning at very local levels fostered by NGO’s, but the established
procedure for development planning remains top-down, by
way of schemes to address specific problems and opportunities
(Table1). These schemes are mandated and financed by the state
or central government and implemented by sectoral institutions
such as the Department of Agriculture.
Table 1: Some
of the specific items for attention drawn up by the 11th schedule,
73rd and 74th Constitutional Amendment
Acts, 1992
Land improvement, implementation of land reforms, land consolidation
Soil conservation
Minor irrigation, water management, and watershed development
Social forestry and farm forestry
Roads, culverts, bridges, ferries, waterways
Drinking water
Fuel and fodder
Rural electrification
Adult and non-formal education
Poverty alleviation programs
Rural development planning
is now being decentralized so that plans may take account of local conditions
and needs. The key level of decentralized planning is the zilla (district).
The mean area of the district is 6 810 km2 (and most are between
2000 and 20 000 km2) with a mean rural population of 1.8 million.
Each district is divided into 15 – 20 talukas (blocks) and many panchayats (village
clusters).
Districts are now required to draw up and implement integrated development plans,
and those districts that have independent tax-raising powers are in a position
to initiate their own schemes to address local needs. This task is made the more
difficult by the strictly sectoral structure of government activity and of formal
information about natural resources, social and economic conditions and infrastructure.
The Natural Resources Data Management System (NRDMS) is a multi-disciplinary
programme of the Department of Science and Technology, Government of India, that
is developing decision-support systems for decentralized planning using geographic
information system (GIS) technology. Its immediate clients are planners and the
professional staff of line ministries, in particular the departments of agriculture,
forestry, rural development, irrigation and revenue at the district level (all
line ministries are represented at district level).
A DSS is a computer-based information system that assists a decision-maker at
the moment of taking a decision. An SDSS is a DSS applied to spatial problems.
Because of the spatial nature of the decisions, a GIS Geographical Information
System must be the centerpiece of any SDSS.
Planning in general is the process of allocating resources, including time, capital,
and labor, in the face of limited resources, in the short, medium or long term,
in order to produce maximum benefits to a defined group. Land use planning (LUP)
is the activity of designating uses for different land areas (zoning), as well
as specific interventions (e.g., infrastructure or local works, subsidies, material)
that are necessary for carrying out those uses. Zoning may be proscriptive (also
called normative), i.e. prohibiting certain uses in a zone, or prescriptive,
i.e. advocating certain uses in a zone. In the context of rural India, planning
mainly consists of the distribution of resources (infrastructure, subsidies,
assistance) according to various ‘schemes’ that are mandated by Central or State
governments, i.e. prescriptive planning.
Planning may be participatory (bottom-up), where the people directly affected
themselves make the plan. Or, planning may be executive (top-down), where decisions
are taken by responsible agencies that supposedly represent the interests of
society as a whole, and then take actions to implement or coordinate the plan.
Spatial Decision Support System for rural Land Use Planning (SDSS/LUP) is an
attempt towards a prescriptive and executive-level planning, i.e. where the decisions
must be made on the use or allocation of resources in space by the responsible
agencies.
2.0 Conplan
2.1 Objectives
The overall objective
is to formulate spatial information on various resource parameters for conservation
planning.
- Generation of GIS-based district-level
spatial information, for macro-level planning, from multi-source data on
the following bio-physical characteristics:
- Soil, slope, drainage, climate,
land use, delineation of watersheds, geology, geomorphology, groundwater
potential.
- Generation of a block/watershed-level GIS-based
resource profile for Conservation Planning Information Systems (CONPLAN):

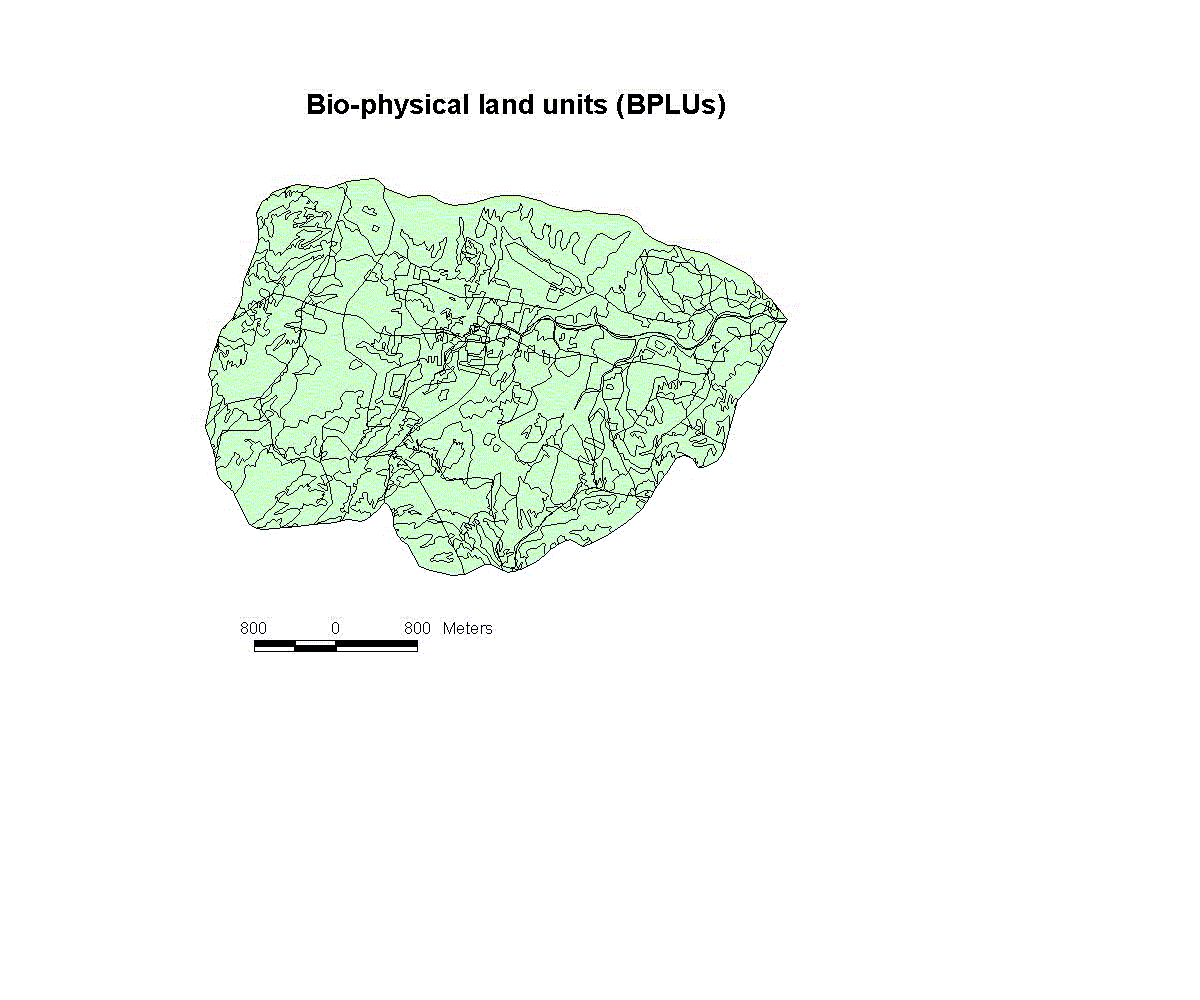

- Bio-physical resource evaluation
- Demarcation of Bio-physical land units
(BPLUs)
- Utility of BPLUs for conserving

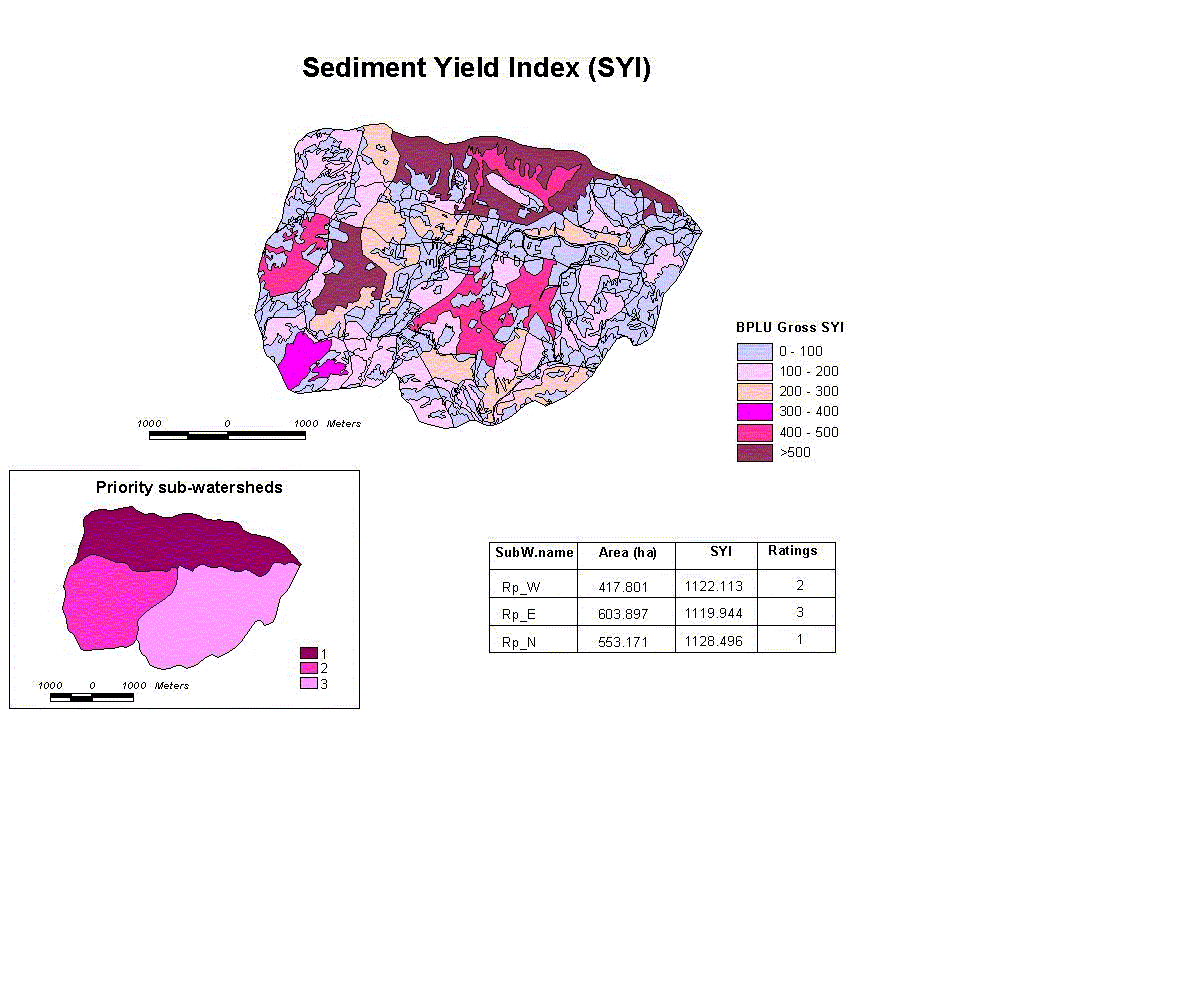

planning information systems for sustainable development (soil erosion
assessment; prioritization of watersheds; and land-use planning scheme)
2.2 GIS-based spatial
information at District-level
The approach for generating
district resource appraisal was tested in a rural-based and drought-prone
Kolar District of district of the Mysore Plateau region. Generation of GIS
thematic mapping was carried out at 1:250,000 scale using GRAM and GRAM++.
2.2.1 District Scenario
The total geographical area of Kolar District
is about 8223 km2. The district, bordering the Eastern Ghats in
the north-east and the southern portions, belong to the Maidan (plain) group
of districts in Karnataka State. The bedrock in the district is mostly the
granitic in nature. The area has a local relief ranging from 1677 feet to
4749 feet. Kolar district is dotted with a number of hills and peaks of varying
heights, particularly in north. The principal chain of mountains is the Nandidurga
range. There are not perennial rivers in the district, most of them are being
small. Three important rivers:Palar, North Pinakini and South Pinakini take
their birth in the district and flow in different directions, receiving the
drainage of the intermediate tracks of the district. The climate of the area
is sub-tropical monsoonic. The district is situated half way between the
eastern and western coasts, and comes under the influence of both the south
west and north-east monsoons with an average annual rainfall of about 730
mm, out of which 69% is through south-west monsoon. The natural vegetation
is scanty and consists of dry deciduous or thorny scrub types of forests
(occupies are 10% of the district), shrubs and grasses. Land put to agricultural
use forms roughly 1/3 of the total land area and dry cultivation occupies
a pre-eminent place. Ragi is the most extensively grown crop in the district
and is the staple foodgrain of bulk of the people. The soils of Kolar district
are mainly divided into three types: red, clay loam and laterite. . The district
has been experiencing drought for several years continuously in the past,
and sometimes acute. There is no canal irrigation in the district and irrigation
traditionally has been sustained by tanks which are distributed throughout
the district. Many of these tanks are now completely dried up as a result
of drought and silted up with reduction in storage capacity as well as preventing
recharge of ground water. It is also gathered that the ground-water discharge
through existing wells is very much over drawn resulting in lowering of ground-water
table. Soil erosion in the district is an acute problem and may be attributed
to poor soil conservation practices, scantily distributed vegetation cover
and overall dry climate with an erratic monsoon rainfall.
2.2.2 Results achieved so far
- GIS-based
spatial information (1:250,000) using GRAM / GRAM++ for Kolar
District of Karnataka :
- Soil types (Figure
1)

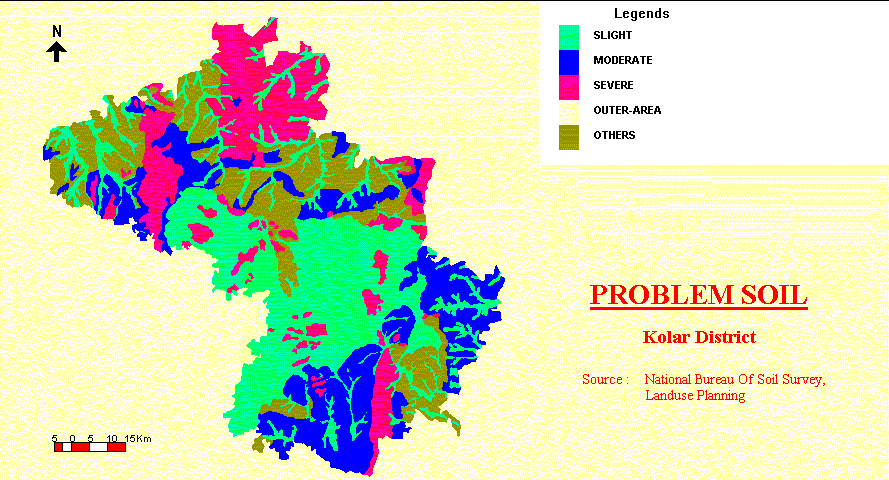

- Problem soils (Figure
2)

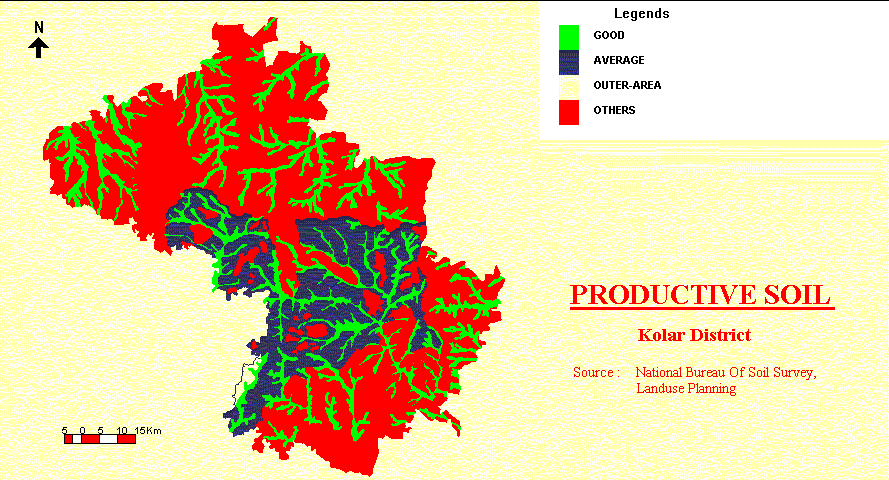

- Productive soils (Figure
3) Source : NBSS&LUP

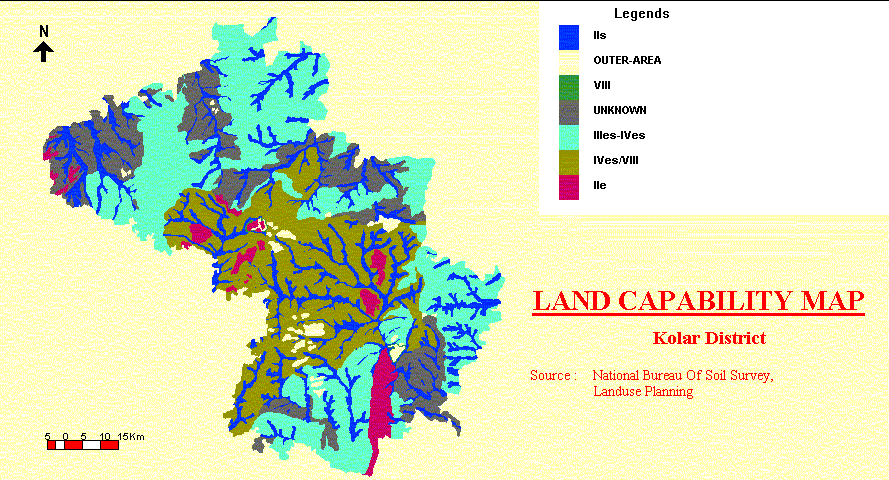

- Land capability (Figure
4 )

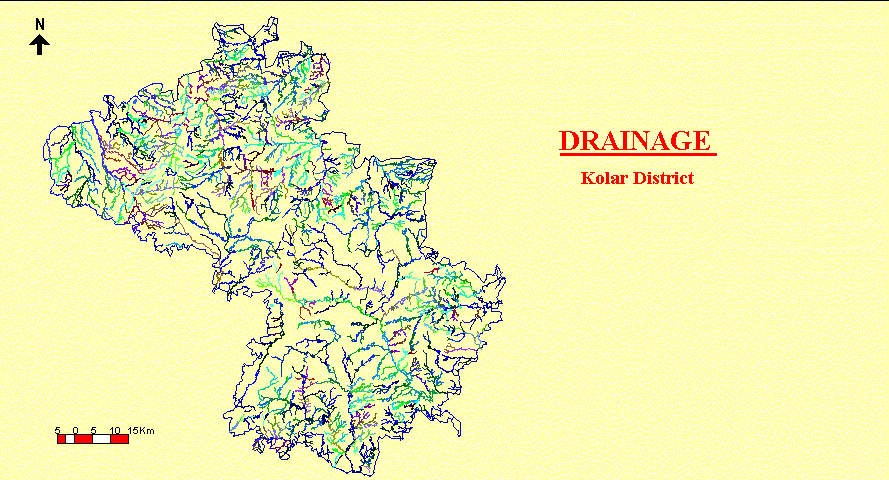

- Drainage (network and density) (Source
: SOI Toposheet and updated from IRS-1C LISS III data) (Figure
5)
- Slope (Source : SOI Toposheet) (Figure
6)

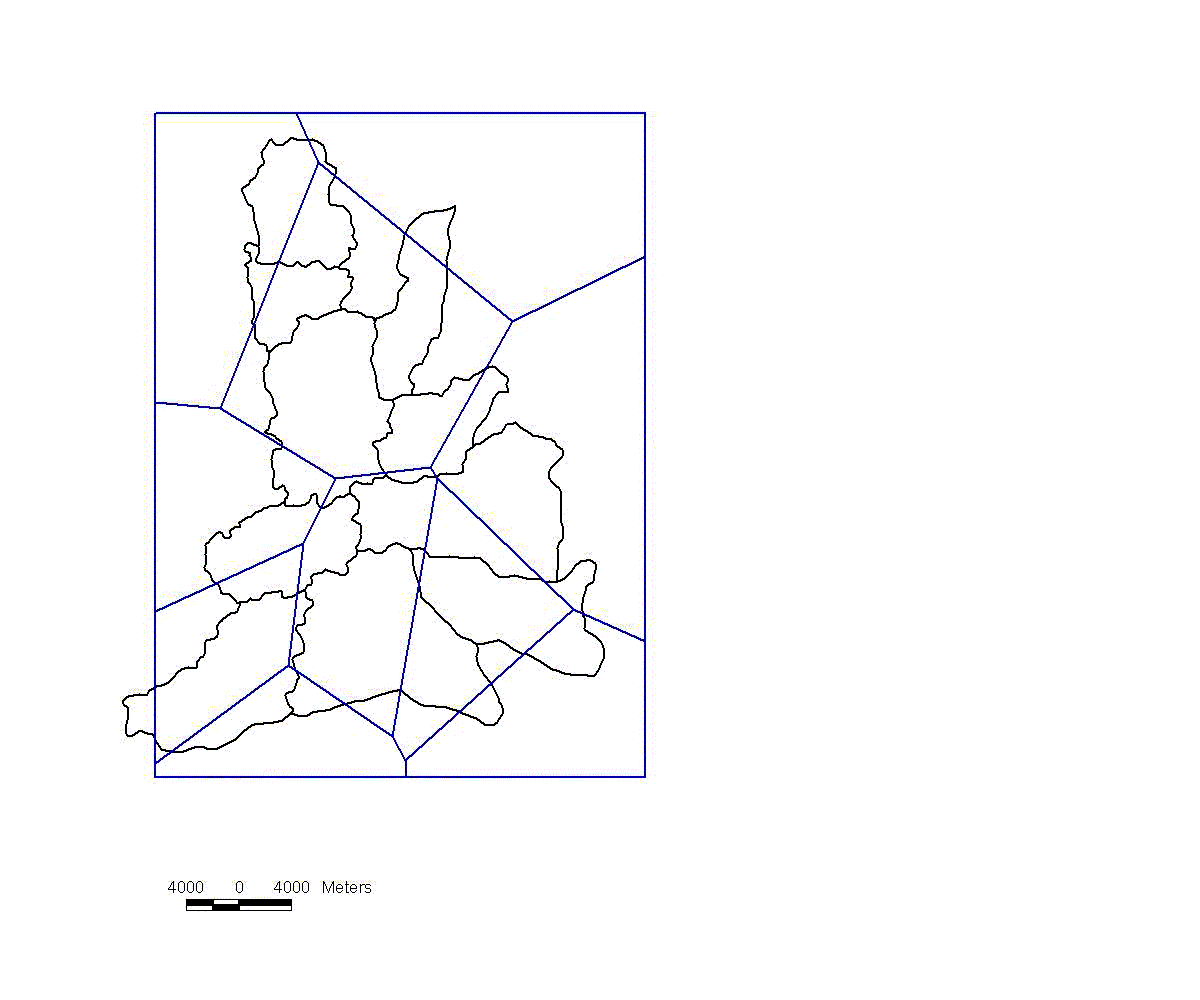

- Climate (rainfall distribution graphs
with mean monthly rainfall bar and its value, no of rainy days ; Thiessen
Polygons for the year 1986-1995) (Source : NRDMS District Centre, Kolar)

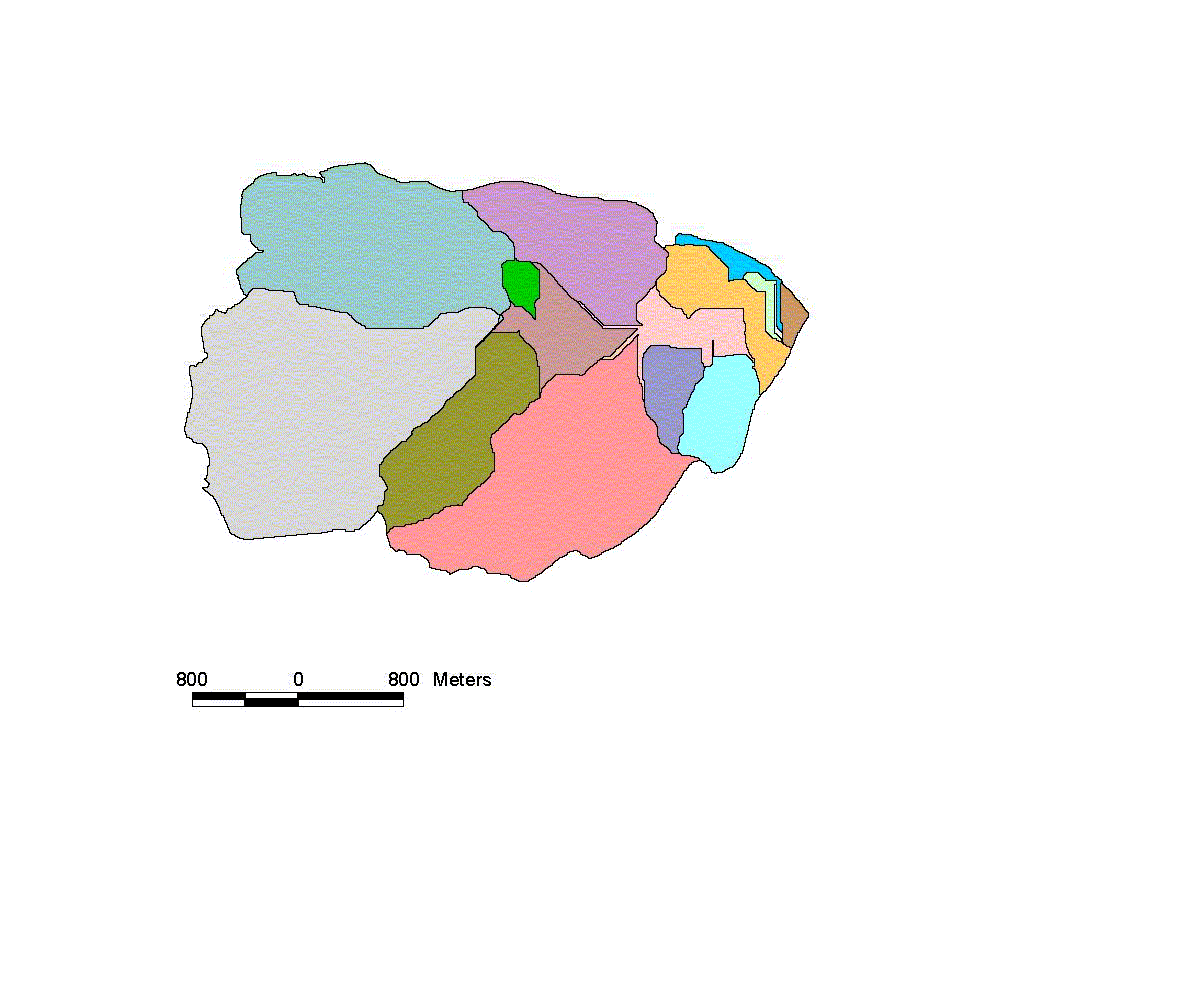

- Watershed delineation (upto third-order
level) (Source : drainage map and contours from SOI Topomaps) (Figure
7)

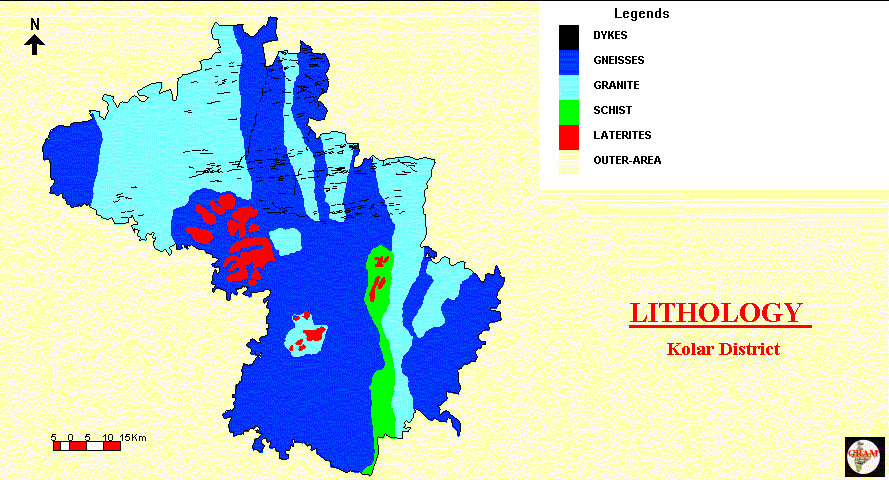

- Geology (Source : GSI)(Figure
8)

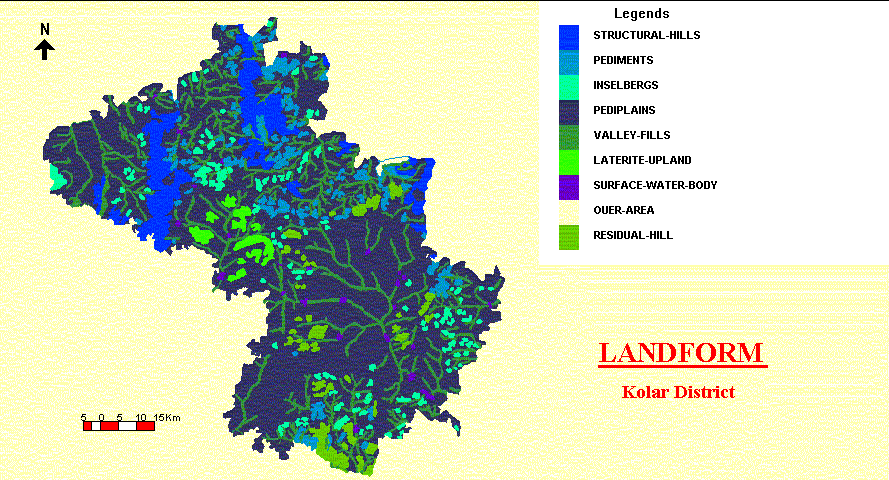

- Geomorphology/landforms (Source : SOI
Toposheets and IRS-IC LISS III data) (Figure
9)

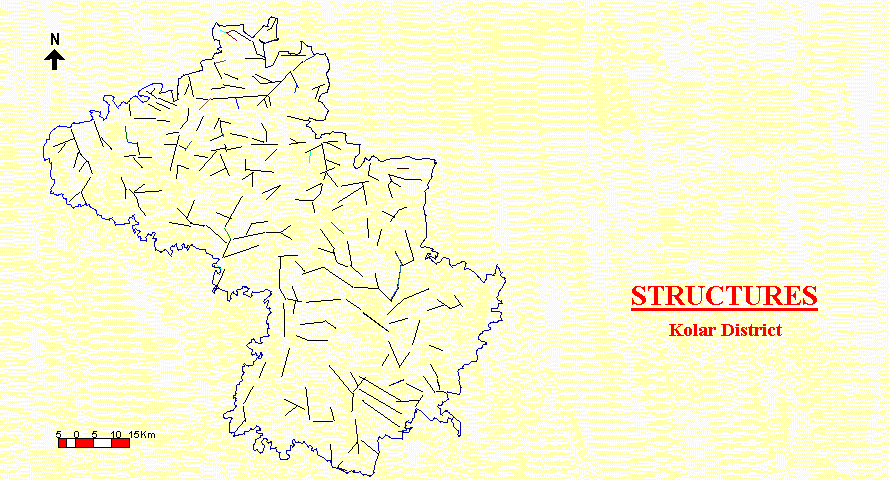

- Structural map (Source : SOI Toposheets
and IRS-IC LISS III data) (Figure 10)
- Hydro-geomorphic map (Derivative map
from Landuse/Geology/ Lineament /Geomorphology) (Figure
11 )

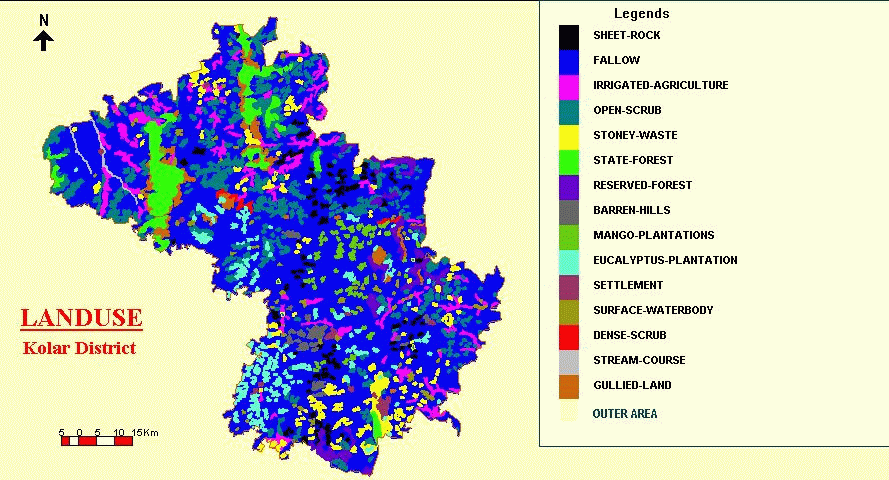

- Landuse pattern (Source : IRS-IC LISS
III data) (Figure 12)

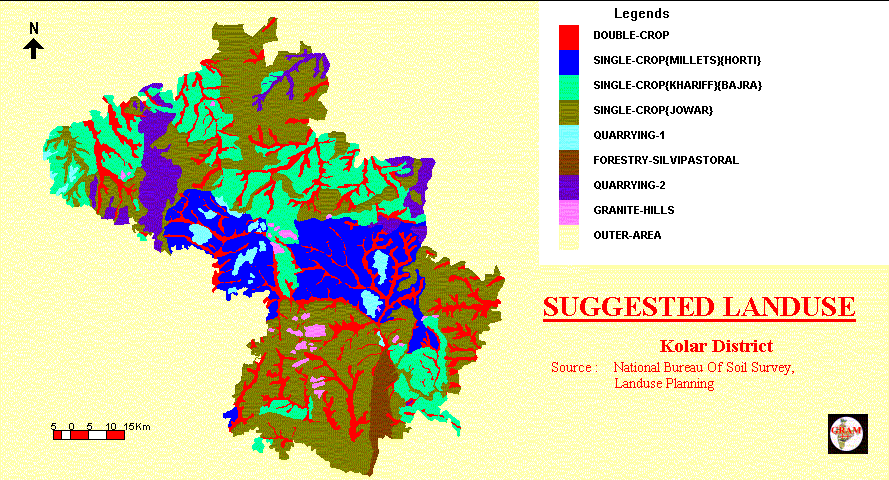

- Suggested land use (Source :NBSS&LUP) (Figure
13)
2.3 Conservation Planning Information
Systems (CONPLAN)

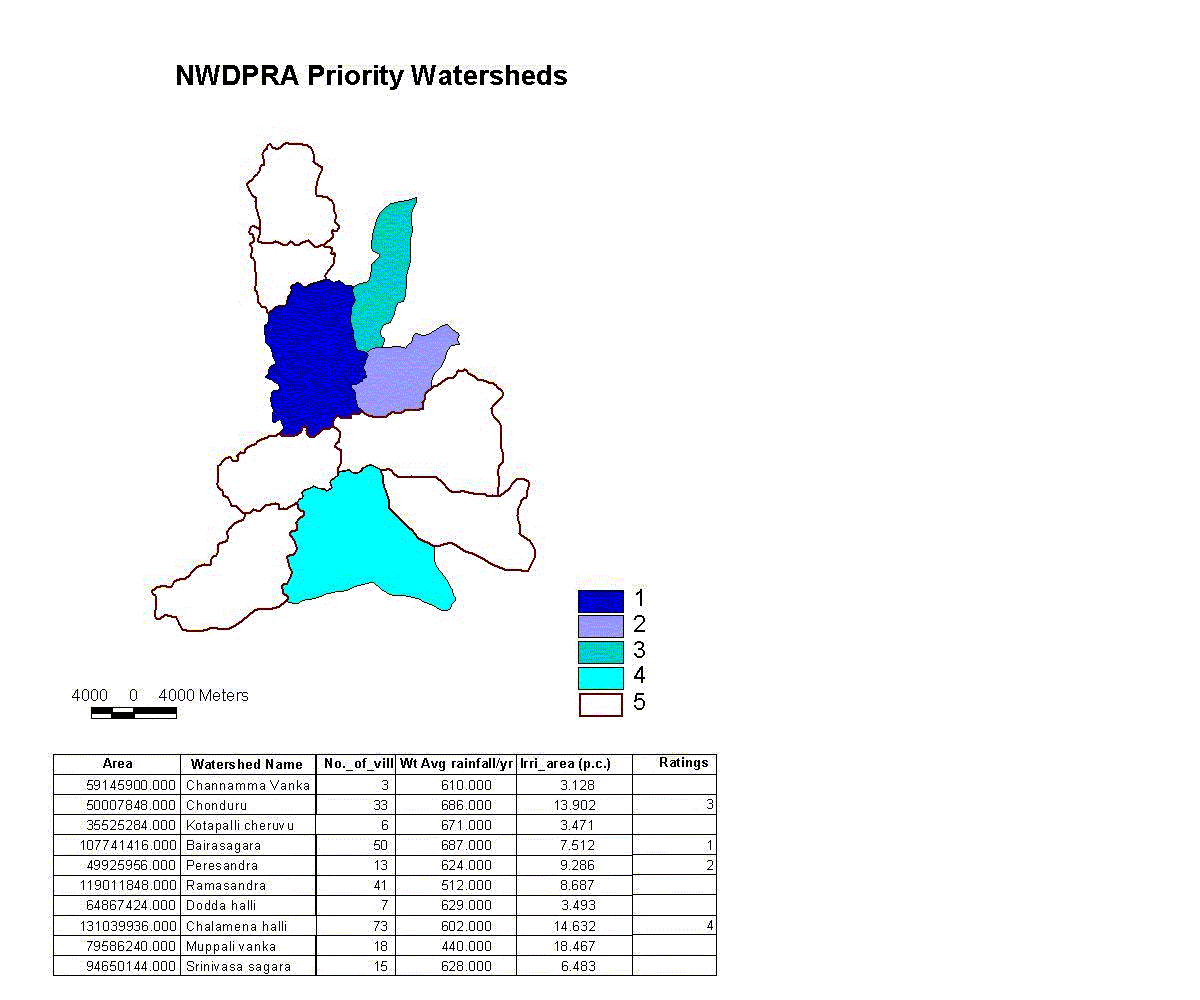

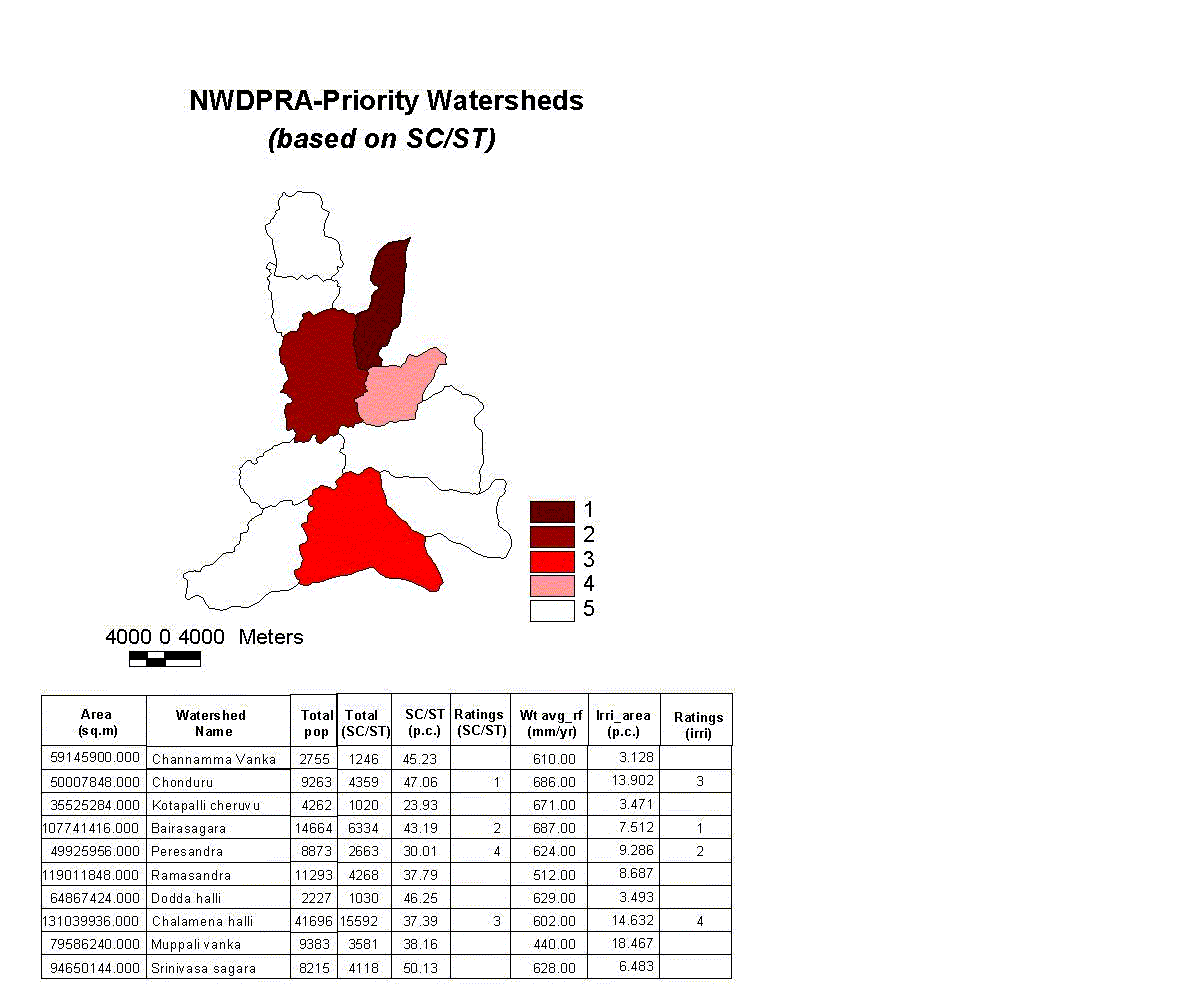

Bairasagara watershed,
selected the NWDPRA scheme, was chosen for developing the information
system for conservation planning. The watershed covers an area of approximately
100 sq. km., and contains about 60 villages, partly or completely, that falls
in Chikballapur and Gudibanda talukas of Kolar district. The works completed
in CONPLAN model, using GRAM, includes :
A. Biophysical resources (1:50,0000)

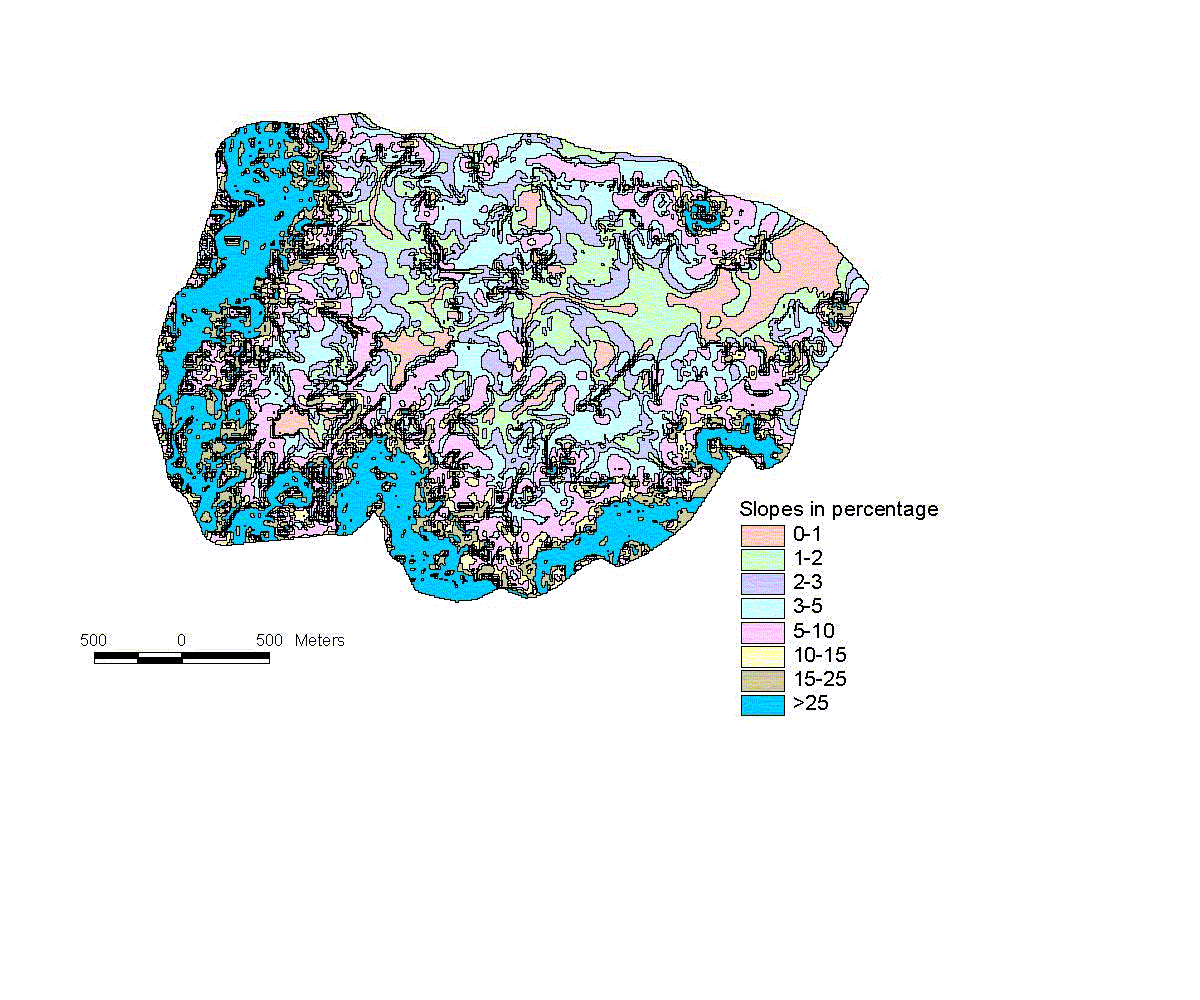

- Slope

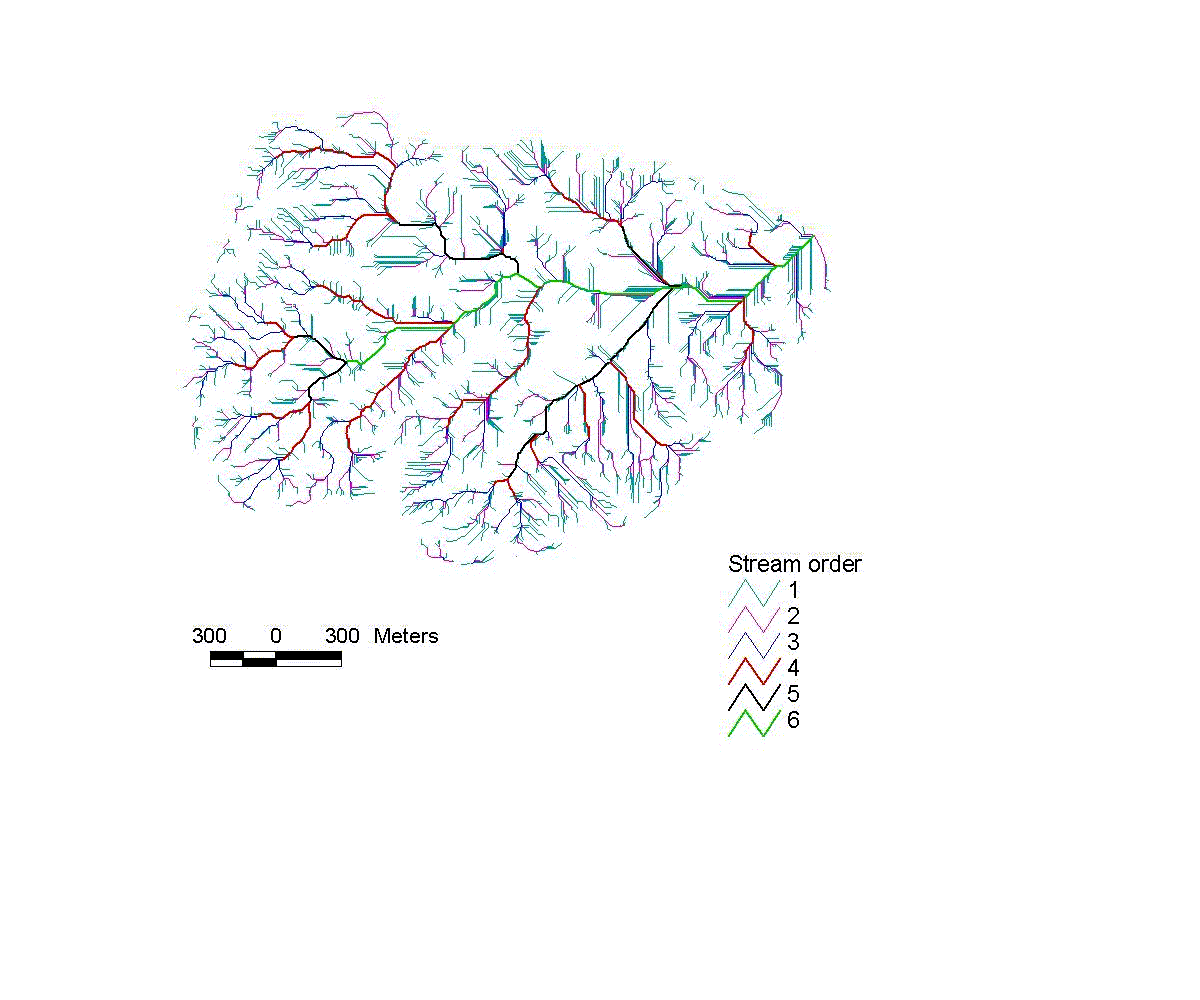

- Drainage network
- Soils (NBSS&LUP)

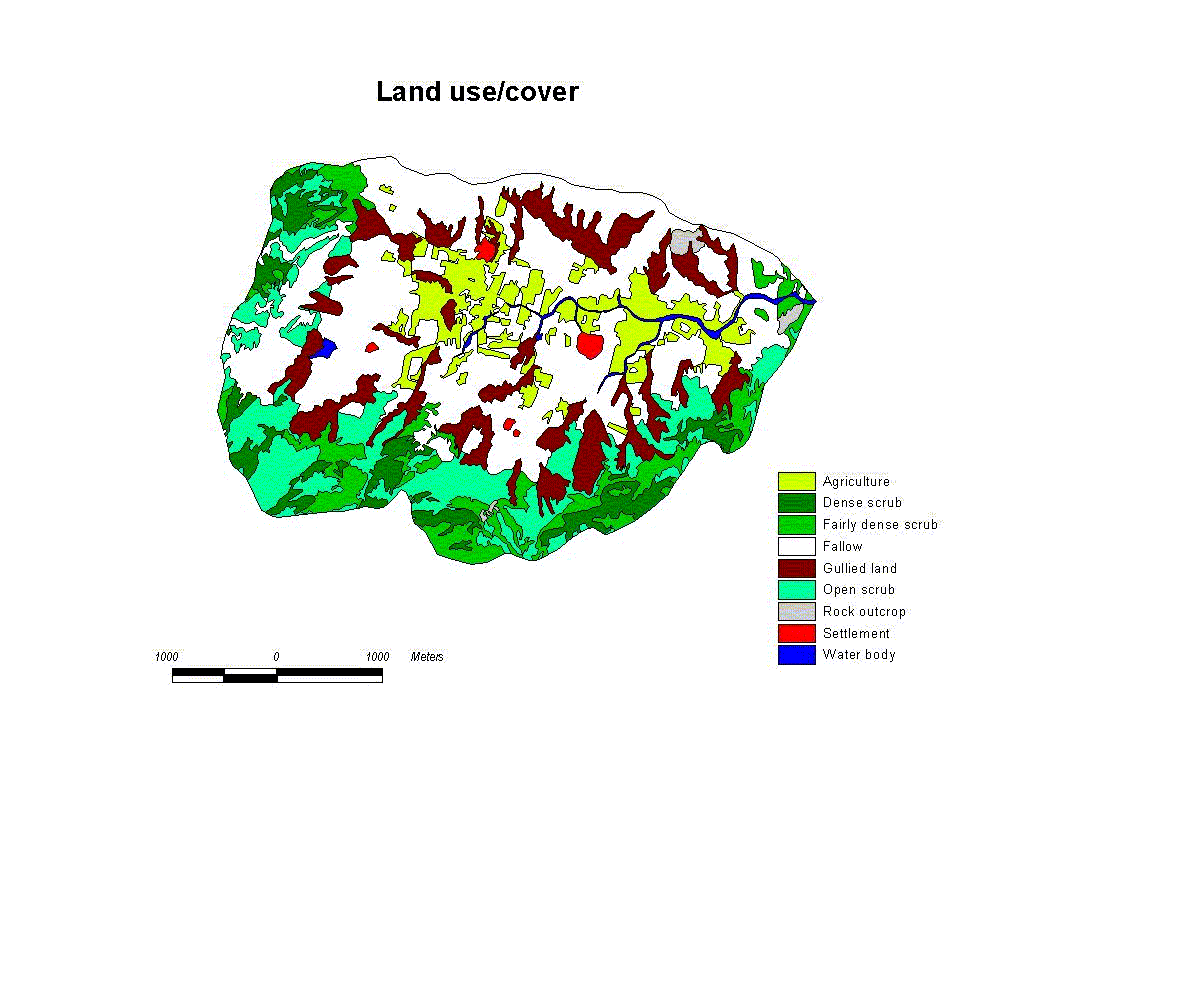

- Landuse
B. Conservation Planning

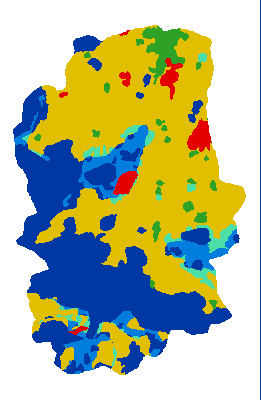

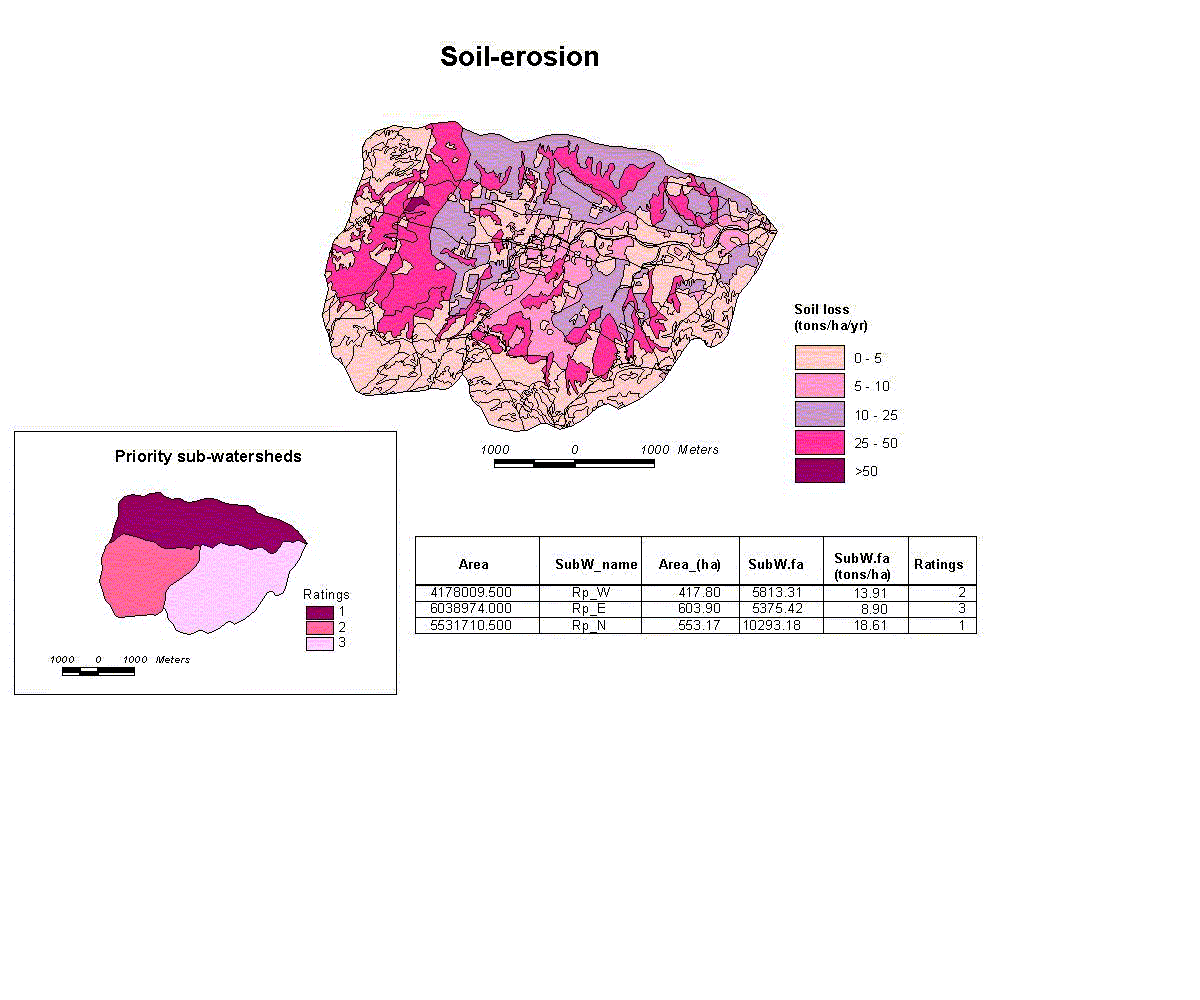

- Soil erosion assessment by USLE model
(Wishmeier & Smith, 1978) (Figure
14)
3.0 Spatial Decision Support
System for rural Land Use Planning (SDSS/LUP)
The above mentioned project
on CONPLAN was subsequently included in the UNDP/GOI (DST) joint
programme " GIS based Technologies for Local Level Development Planning" (IND/95/002),
under the Land Use Planning sector. The main objective of
the project has been shifted from the development of a system-approach model
‘CONPLAN’ to the development of a decision-aid ‘Spatial Decision Support
System for rural Land Use Planning -SDSS/LUP’, aimed
at agencies that play at the local level. SDSS/LUP in the context
of this project would be an automated system, applied to problems
at the district or taluka level, that would assist a decision-maker at these
levels to make zoning and intervention decisions. These planners are both
the co-ordinating planners such as NRDMS District Centres, and those in relevant
line agencies, among others Agriculture, Forestry, Rural Development, Revenue,
Irrigation, Sericulture and other Natural Resources Management Community.
Thus, some applications of the SDSS could be narrowly sectorial, while
others could be broader, requiring an integrated approach.
International experts have
reviewed the SDSS/LUP approach at regular intervals. The international land
evaluation specialists, Dr D.G Rossiter from the ITC-Netherlands and Dr David
Dent from the Bureau of Rural Sciences-Australia, were consulted to conceptualise,
to evaluate and to modify the model ‘SDSS/LUP’ in September 1998 for
three weeks and in November 1999 for a week, respectively.
3.1 Conceptual Design
(Framework)
The concept of SDSS is
to draw together the natural resources and land use data of sectoral agencies
(topography, satellite imagery, census reports and thematic maps), process
them to computer-compatible format, and build up a district database. The
district database will be manned by an information specialist who can generate,
on demand, a range of GIS products to assist planning and decision-making:
analytical maps, statistical tables and input to models. Table 2 lists the
thematic maps and attribute data that are being entered into the NRDMS database
and linked by a geodetic reference framework.
Table 2 : Thematic
data held within the GIS
Administrative boundaries Land
use/land cover/forestry/wildlife
Topography Drainage, water bodies
Geology Mineral resources
Hydrogeology Roads, settlement and infrastructure
Soil Agroeconomy
Groundwater Demography
Climate
As well as gaining access
to the analyzed information, district staff will receive hands-on training
in GIS and its user-interface, so that they will be able to contribute their
local and specialist knowledge to the development and application of the
district database.
3.2 What decisions
are to be supported?
3.2.1 Concept and reality
The concept of
land use planning carried forward from the Perspective Plan for Conservation,
Management and Development of Land Resources (National Land Use and Conservation
Board 1991) is the allocation of land use to land according to land capability
and land suitability. The goals are to optimize production of food, raw
materials, and fuel; and maintain environmental services including supply
of water and disposal of wastes which depend upon the stability and resilience
of the land system.
In reality, however,
land use decisions are made locally by the actual landowners and managers
according to their own knowledge and priorities. The planning system
operates through interventions in the shape of development schemes, notably
those concerned with the development of infrastructure, and these may
be targeted in the light of a zoning of the land according to its capability
or suitability. So the SDSS project is aimed at officers at district
and block level, who are supposed to make the plans and take appropriate
actions.
At the outset,
a needs assessment was carried out amongst district-level staff to establish
their requirements for spatial data. It proved difficult for them to
articulate their needs but a number of specific requirements emerged
from these discussions:
- Area (catchment/sub-catchment)
selection for schemes for conservation
planning by various line departments;
- Site selection for conservation
and water resources infrastructure;
- Land evaluation for changes
in land use.
This requirement
for assistance in the local implementation of schemes handed down from
above reflects the current transitional status of rural development planning
in India - somewhere between central direction and local initiative.
However, we expect that in the future we shall be providing information
for identifying land use problems and opportunities at the district level,
and assisting in the development of responses, at the district and block
level.
The three types
of decisions identified by the district planners are illustrated with

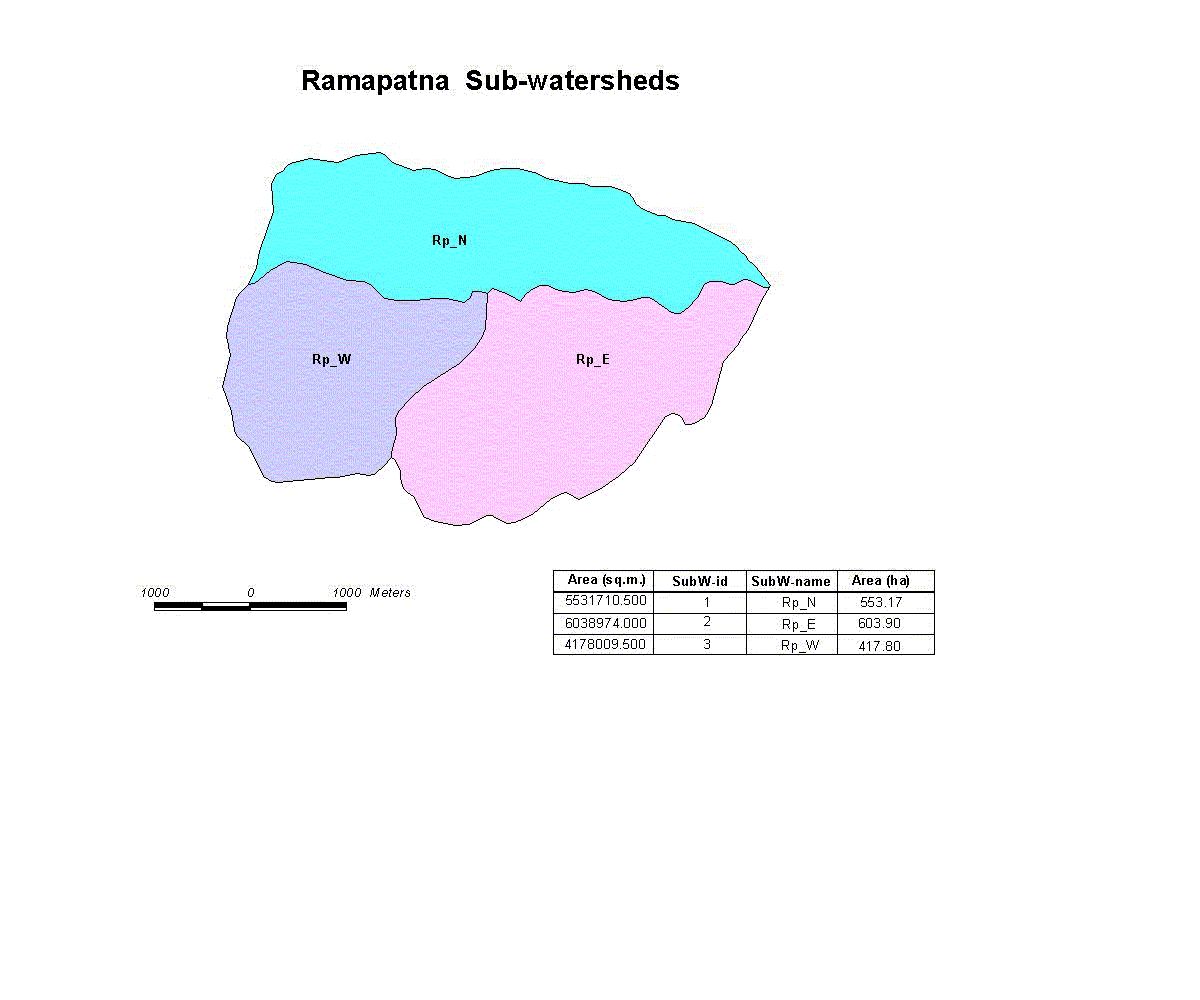

reference to the Chikballapur and Gudibanda blocks and the Ramapatna
catchment, Kolar District, Karnataka State.
Decision type
A: Area selection for schemes
A.1 Which are
priority catchments for intervention by various line departments?
A.1.1 Within
a priority catchment, which sub-catchments should be treated first?
A.2 Where,
within a sub-catchment, are the hotspots requiring interventions?
Decision type
B: Site selection for infrastructure
B.1 Where should
small-scale conservation infrastructure be built? Examples are check
dams, sedimentation basins, stone walls.
B.2 Where should
water resources infrastructure be built or authorized? Examples are borehole
wells, percolation basins, and tanks.
Decision type
C: Land evaluation for changes in land use
For planning
changes in land use, it is useful to think of two complementary kinds
of change. First, options which will yield immediate benefit to the land
user e.g. through increased production, decreased inputs, access
to new markets or decreased risk. These we may call economic options. By
contrast, are those changes which may yield economic benefits only over
the longer term but which increase the sustainability of the land use
system, e.g. soil and water conservation measures, or which benefit
stakeholders off-site, e.g. afforestation for watershed protection.
These we may call conservation options. Another, cross-cutting
grouping may be made of those changes of practice that can be accommodated
easily within the existing farming system, e.g. adoption of a
new crop variety, application of modest amounts of manure, lime and fertilizer,
maybe change from ploughing to direct drilling in mechanized systems.
These we may call easily implementable options, compared with radical
options that require a major change in the farming system, or resources
or technology not available to the land user. Changes of land use that
are both economic and easily implementable may be fostered through the
extension services and spread spontaneously within the community. If
a radical change of land use is to be made, a scheme to provide the necessary
infrastructure and support may be considered.
District land
use planners want land evaluation for all these options so that they
may identify with confidence which land is suitable for a proposed change
of land use and which is not.
C.1 Whereis
a particular conservation measure appropriate?
When a land use
that is causing land degradation is targeted, several conservation options
may be suggested. Examples are: contour ploughing, bunding, and rough
tillage. These are not all appropriate for a given land unit. So the
question arises, where should different conservation options of existing
land use types (LUTs) be recommended to farmers?
C.2 Where is
a specific management package appropriate?
Similarly, when
a land use of low productivity is identified, several management packages
may be suggested by agronomists. Examples are: fertilization and liming,
weeding, varietal selection, and a different timing of operations.
These are not
all appropriate for a given land unit, so the question arises: Where
should particular management packages be recommended?
C.3 Where should new land
use types (LUTs) be recommended and where should infrastructure be placed
to facilitate these new LUTs?
Changing to a new LUT
is a radical change in management, especially for poor and risk-adverse
farmers. It must be introduced with appropriate support. Prior risk assessment
is necessary and management practices should be designed to counter the
risks.
The following are examples
of practical questions (‘applications’) with a spatial dimension that a
rural landuse planner may ask. The SDSS produced by this project may not
at first address all of these. With the consultations from the user agencies,
the following three decision types represent important classes of decisions:
3.3 How are these
decisions actually made?
Long experience
has shown that a DSS is only successful if it in the first instance supports
the existing decision-making process. The DSS is accepted if it assists
the decision-makers to do their job more accurately and more easily.
Later, the DSS can introduce new ways and scenarios to view the decision-making
process. For this reason, we must understand how the decisions listed
above are actually taken. The following is a generalization, emphasizing
the decision techniques actually used.
3.3.1 Area
selection for schemes
Each scheme is
bounded by government policies, which have social, economic and biophysical
dimensions. Policy is enshrined in the directives that establish the
scheme and these commonly lay down criteria for site selection. For example,
the National Watershed Development Programme for Rainfed Agriculture

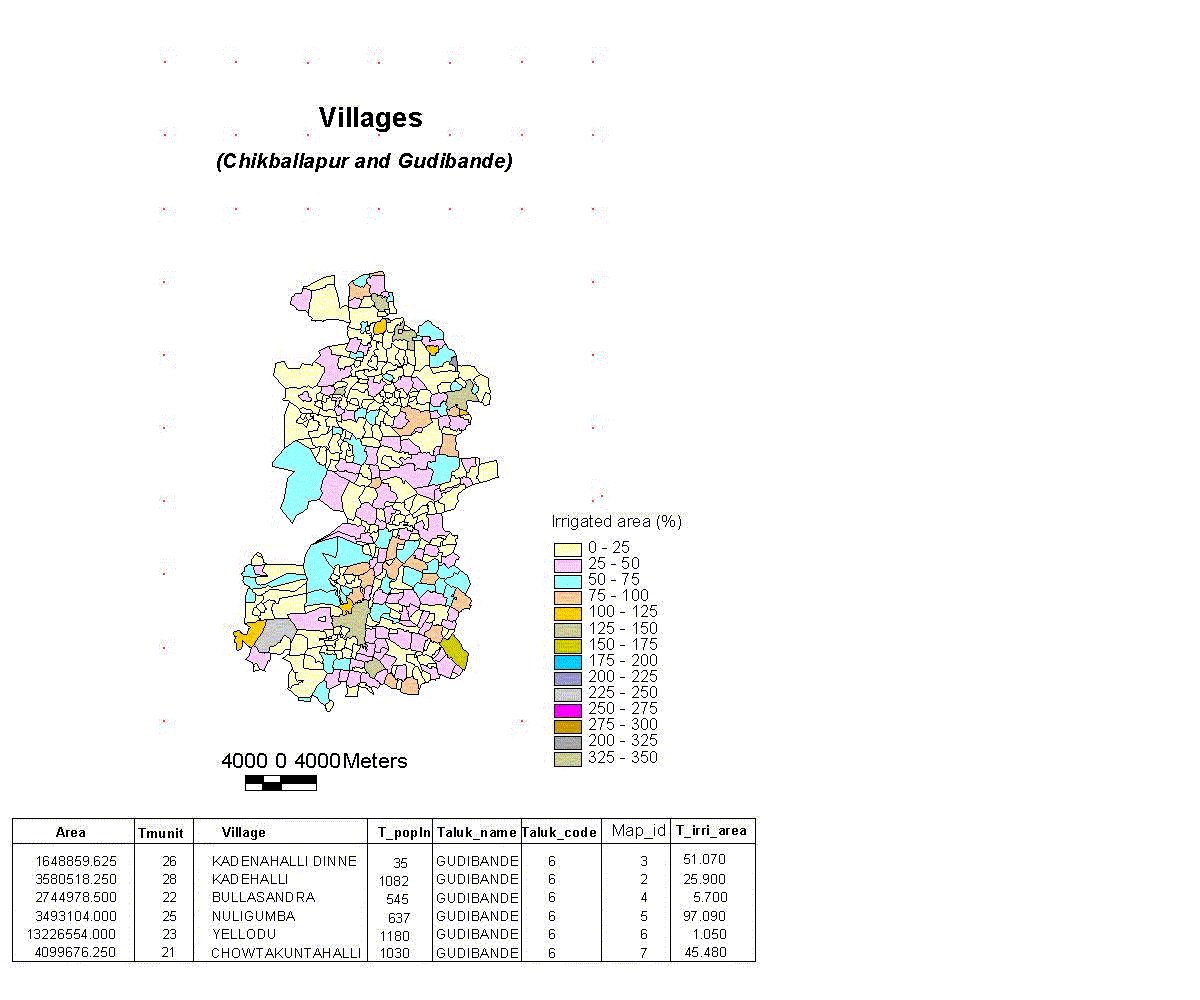

(NWDPRA) lays down four criteria: <30% area is irrigated; <750mm
average rainfall; no other schemes have been implemented; size of a catchment
for this scheme is 10 000ha.Site selection
according to these criteria is not so straightforward as it might appear.
The physical criteria actually reflect the political intention to benefit
the disadvantaged: Also, the concept of a catchment is not strictly hydrological;
there are no standard maps of catchments or any standard method for delineating
them.
The SDSS approaches

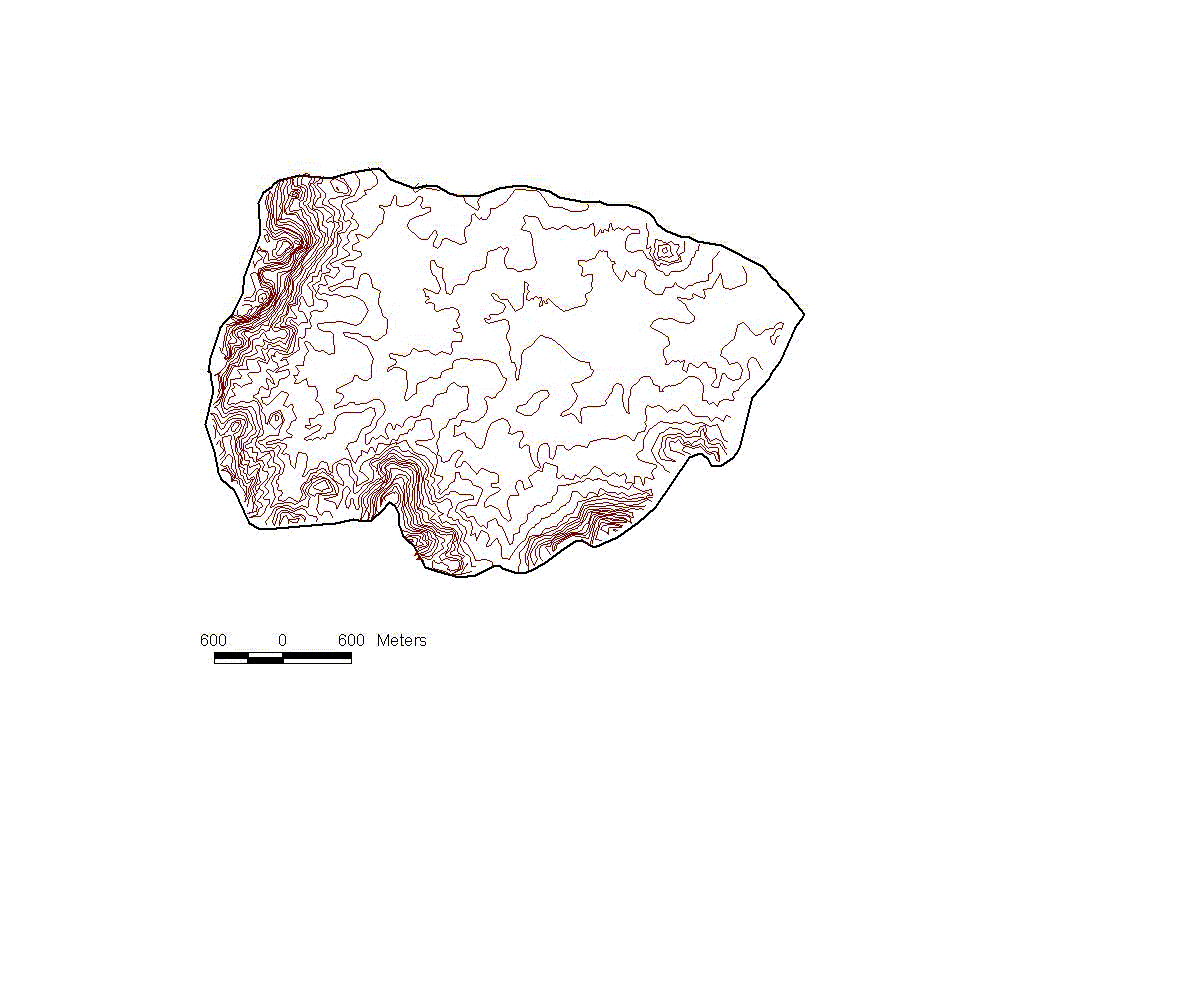

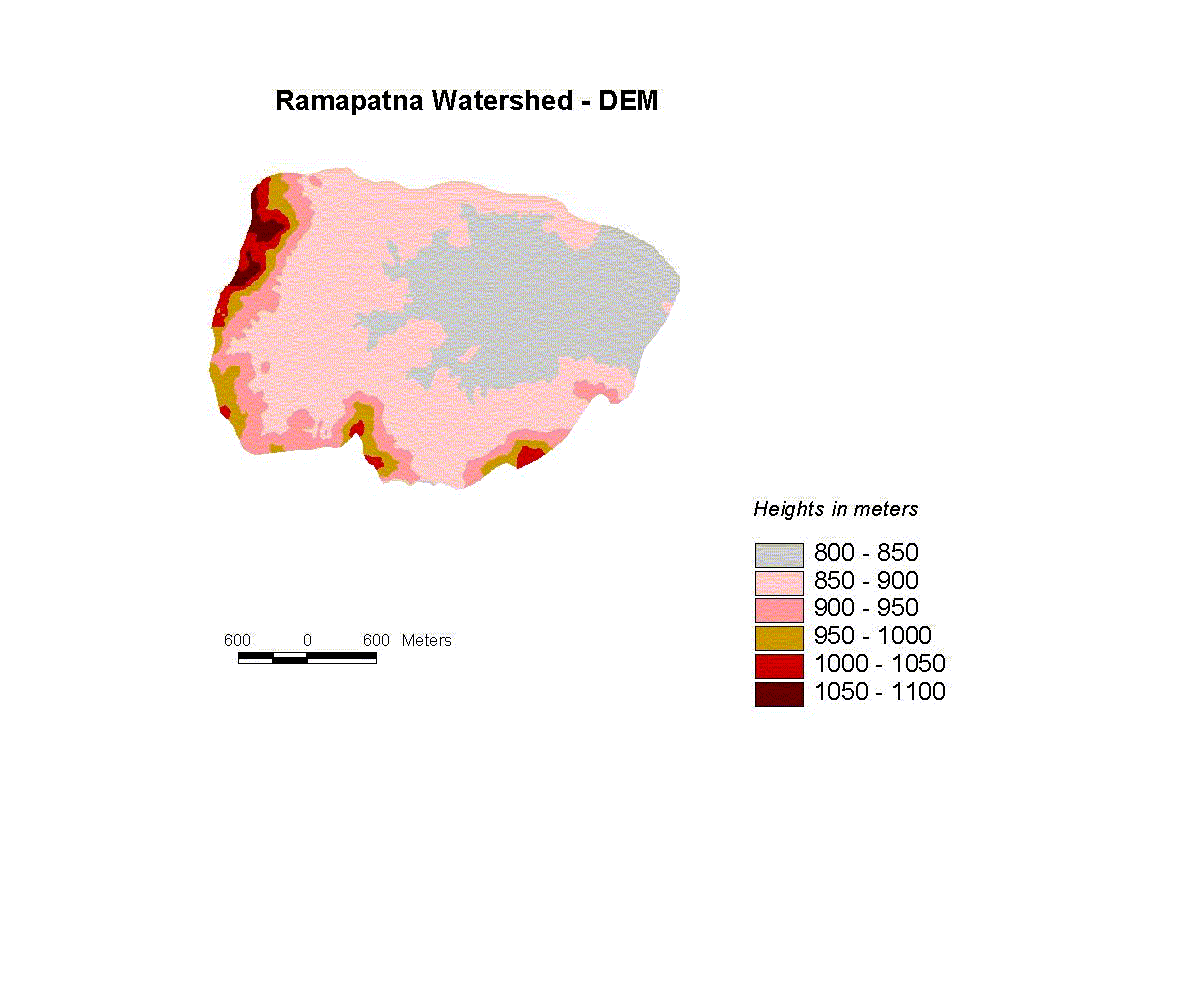

the problem stepwise. First, a topographic base is generated within the
GIS from digital 1:50 000 scale Survey of India topographic sheets. The
boundaries of hydrological catchments are drawn manually to produce catchments
of the required size (10 000 ha) and these boundaries are digitized and
held within the GIS.
Within any catchment
there will be some 20 sub-catchments, each of 500ha, that may be considered
the primary planning units because they are small enough for concerted
intervention. They must be ranked in order of priority for intervention,
and this may be done in various ways. In the absence of the SDSS, sub-catchments
are delineated, again without a specific methodology; and local field
staff will recommend sub-catchments - preferring those with a range of
land types, so that many departments can be involved (e.g. territorial
forestry, social forestry, agriculture, horticulture), those with the
most severe physical problems, and those with the most severe social
problems.
The SDSS adopts
explicit criteria:
- Degree to which sub-catchment
satisfies the objectives of a particular scheme including physical
as well as social indicators;
- Actual problems with productivity
due to erosion or other degradation processes (on-site effects);
- Actual sediment delivery to
reservoirs (off-site or downstream effects);

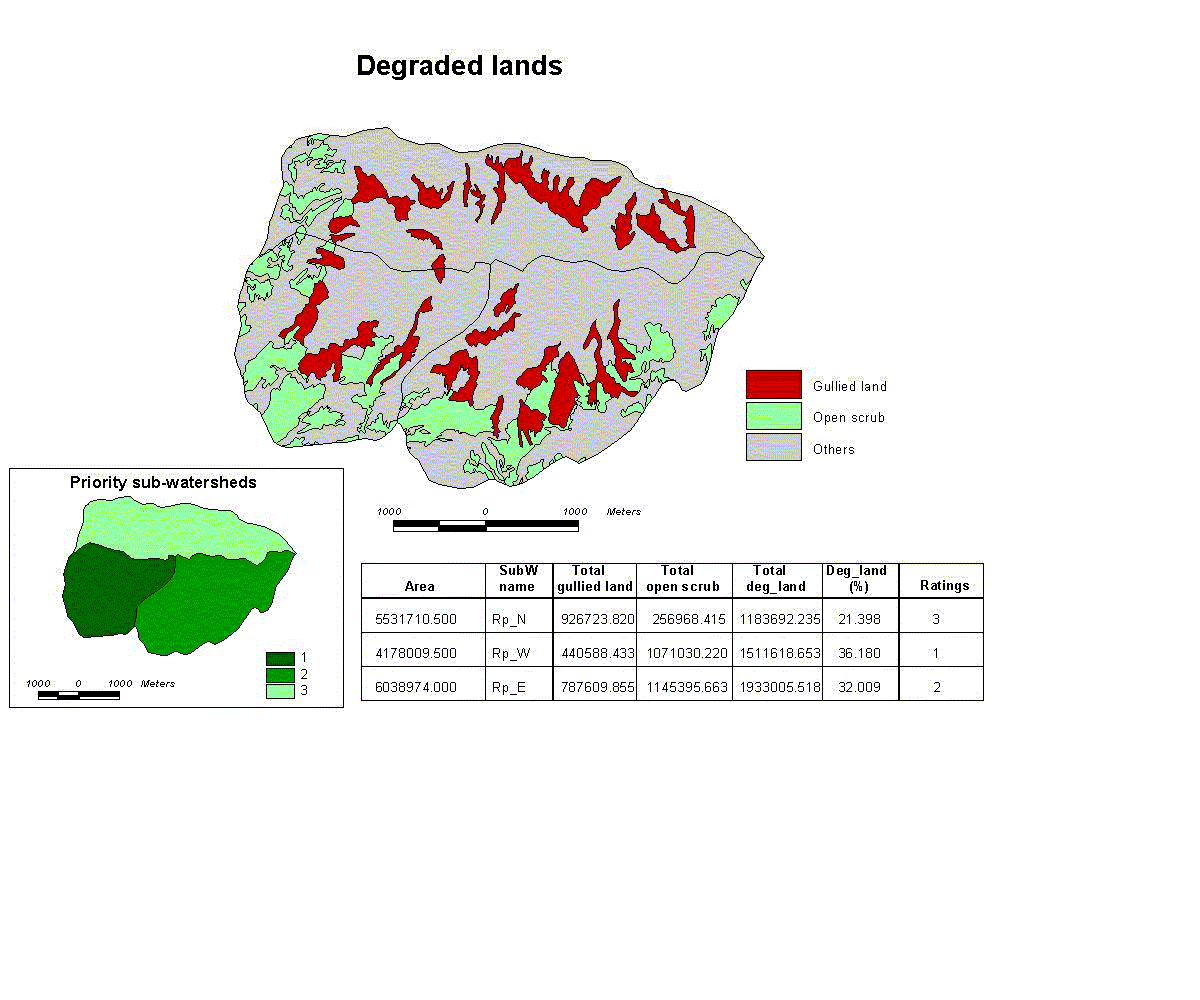

- Actual extent of degraded
land;
- Multicriteria evaluation based
on all of the above.
A separate procedure
is required for each of these criteria, and then a multicriteria analysis
can be used to combine them. Or, decision-makers may simply compare the
several results and combine them intuitively.
3.3.1.1 Using
NWDPRA selection criteria
The sub-catchments
are prioritized according to decision rules formulated by NWDPRA. If
the sub-catchment does not meet the minimum criteria (e.g. if
it has > 30% irrigated land) it is rejected. Otherwise, the same criteria
are used to rank sub-catchments. Example: the less the proportion of
irrigated land, the higher the priority. Intervention in the highest-priority
sub-catchment should go furthest in satisfying policy objectives.
3.3.1.2 By
erosion intensity
The sub-catchments
are prioritized according to the modeled intensity of erosion under present
land use and management. Intervention in the highest-priority sub-catchment
should result in the maximum reduction in erosion. The area of a sub-catchment
is not considered. Instead, the decision-maker chooses sub-catchments
in order of their erosion intensity until the maximum area that can be
treated is reached.
3.3.1.3 Identification
of hot spots
Once a sub-catchment
is identified for intervention, the question arises as to which areas
within the sub-catchment are most critical. The decision is supported
by modeled erosion intensity the individual polygons of the GIS. The
higher the predicted intensity of erosion, the more critical the area
represented by the polygon. The SDSS presents the decision-maker with
a map of the sub-catchment with a continuous scale where brighter areas
correspond to more critical areas. This is overlain by the road and stream
network, as well as contour lines, to help the field worker to locate
the critical area on the ground.
3.3.1.4 By
sediment yield
Sub-catchments
are prioritized according to the modeled sediment delivery to major watercourses
or reservoirs. Intervention in the highest-priority sub-catchment should
result in the maximum decline in sediment delivery. In this case, the
area of the sub-catchment is considered, because of sediment delivery
depends on area.
3.3.1.5 By
present land degradation status
Sub-catchments
are prioritized according to their proportion of degraded land. Intervention
in the most degraded sub-catchment should result in the maximum proportional
land reclamation but this is by no means the same thing as optimum
return for the effort expended. The more degraded the land, the less
and the slower its response to management inputs. This criterion may
still be adopted for social reasons.
3.3.1.6 Multicriteria
evaluation
Each single-criterion
evaluation provides a ranking of the sub-catchments. In the case of
the NWDPRA selection criteria, the evaluation also may also reject
sub-catchments that do not meet the scheme`s criteria. These individual
rankings may be combined by a variety of methods, e.g. using
DEFINITE software (Janssen & Herwijnen 1992).
The SDSS
also greatly reduces the labour of following the more simple procedures
and produces quantitative results (average erosion rate, sediment yield,
proportion of degraded land) which can be presented as a matrix of
calculated values or ranked to assist the decision maker.
3.3.2 Site
selection for interventions
Once a catchment
and sub-catchment are selected, specific sites must be chosen for intervention.
At present, field workers use their own judgement with input from local
people. This seems to be satisfactory, at least at the micro level.
An optimization procedure could be applied, using linear or quadratic
programming. The objective function would be maximum utility, e.g.
maximum improvement in productivity or maximum area of land reclaimed.
The constraints would be total budget. Probably, labour and
materials are not limiting. However, it is not clear that field workers
would be interested in such a theoretically optimal solution. Also,
it would require detailed information on benefits expected from each
intervention. This theme will not be developed further at this time.
3.3.3 Land
evaluation for changes in land use
3.3.3.1
Limitations of available data
Land evaluation
may be defined as the process of assessment of land performance when
the land is used for specified purposes (FAO 1985) or, more broadly,
as the process of matching land use with land according to their compatibility
(Dent and Young 1981). Once the qualities of the land and the requirements
of a land use type are determined, allocation of land use to land or
introduction of new management practices can proceed on a rational
basis, at least with respect to what the land can offer. For any new
or modified use, some areas are better suited than others but the emphasis
is on change.
This is
a more complex task than those dealt with so far. SDSS has to provide
a consistent level of information and analysis based on data that are
available now, nation-wide, and this information has to be useful to
today’s decision makers without the need for specialist training. At
present, the options are limited by the availability and scale of fundamental
data (Box 1).
Box
1: Components of the SDSS data base |
- Digital 1:50
000 scale Survey of India topographic maps which have a contour
interval of 20
- An overlay of
district and block boundaries with village centres identified
as points
- Social, economic
and agricultural census data (e.g. proportion of irrigated
land-required by NWDRA site-selection criteria), held in
tabular format by administrative unit
- Agroclimatic
data, held in tabular format by point. There is an India
Meteorological Department centre in each district and
a much more intensive network of rainfall stations. At a more generalized
level, the country has been dividend into agro-ecological
zones (NBSS & LUP 198?).
- Geological Survey
and, sometimes, geomorphological maps at 1:250 000
- Land cover interpretation
of 1:250 000 satellite imagery
- All India Soil
Survey maps at 1:250 000, sometimes at 1:100 000
|
The data
available for several of these fields are inadequate for many of the
models that could otherwise be used to supply the information that
decision-makers want. For instance, the soil erosion model, already
discussed, demands details of rainfall intensity and duration, and
soil erodability. Flood prediction, water resources and groundwater
recharge models (being developed by collaborating institutions elsewhere
within the NRDMS programme) depend upon data for infiltration rates,
transmissivity and water storage in the soil and regolith. All of the
more sophisticated procedures of land evaluation demand quantitative
data for specific soil attributes such as soil depth, available water
capacity, nutrient status, salinity, and depth to groundwater. These
parameters are simply not available from the existing soil, geological
and geomorphological maps of whatever scale.
It is always
possible to collect detailed data for specific attributes for special
study areas, but this effort cannot be replicated. The problem of inadequate
data is being handled in two ways:
3.3.3.2 Land
use sustainability assessment (LUSA)
To provide
an immediate and useful service to decision makers, physical hazards
have been identified: for instance drought, soil erosion, or excessive
percolation under irrigation. Then, indicators of these hazards for
which information can be obtained have been sought. These indicators,
or limitations have been ranked in order of the ease of obtaining data;
and the subtractive approach described by Shaxson (1981) has been applied.
The procedure
has been programmed to successively de-rate any parcel of land under
consideration according to the severity of the limitations; arriving
at a six-fold classification comparable to the well known land capability
classification (Klingebeil and Montgomery 1961) but with additional
loops to accommodate rice and irrigated land (Appendices I, II, III).
The defining values for each class are locally calibrated and the result
is expressed with up to three degrees of confidence, depending upon
the completeness and quality of data used in the assessment, for example "not
better than Class C – with one degree of confidence <C (1)" (Appendix
IV).
On the basis
of the identification of hazards, district staff can design management
packages to combat the threats to the sustainability of the desired
land use, or recommend an alternative land use. In short, we are applying
the threat identification and management concept outlined by Smith et
al. (1999).
3.3.3.3 Transfer
functions and models
Transfer
functions are being developed to derive the single attribute data required
by LUSA and existing SDSS models: e.g. for the crop growth model
- soil series > soil texture and thickness > available water
capacity; for the groundwater model - lithological unit > permeability
and fracture pattern > rate of groundwater recharge.
For the
usual case in which the existing mapping is not at the required scale,
or shows only compound mapping units (e.g. soil associations),
models are being developed to predict the attributes of interest from
the 1:50 000 digital elevation model held within the GIS. This is done
for each soil landscape which is identified as a pattern on the 1:50
000, satellite imagery by establishing the relationships between each
attribute of interest and the position in the landscape and slope form.
For the LUSA, even the 1:50 000 topographic base does not always permit
the delineation of crucial slope differences, especially where the
land is bunded. Once again the boundaries have to be inserted using
interpretation of satellite imagery or air photos.
3.4 Test
Area
In order
to test and validate the concepts of the SDSS, it is necessary
to focus on a specific area of manageable size, for which reasonable
data are available, and on specific decisions. Also, out of the set
of possible decisions, we must select some specific decisions that
are important both in the test area and elsewhere.
In the first
instance, (1) two talukas (blocks) were selected : Gudibanda and Chikballapur,
for identifying the priority watersheds for NWDPRA scheme; (2)
Ramapatna watershed (» 16km² = 1,600 ha), in Kolar District, for other
applications of watershed characterization, identifying the
priority sub-watersheds and sites selection for conservation/water-resources
infrastructures (Figure 15).

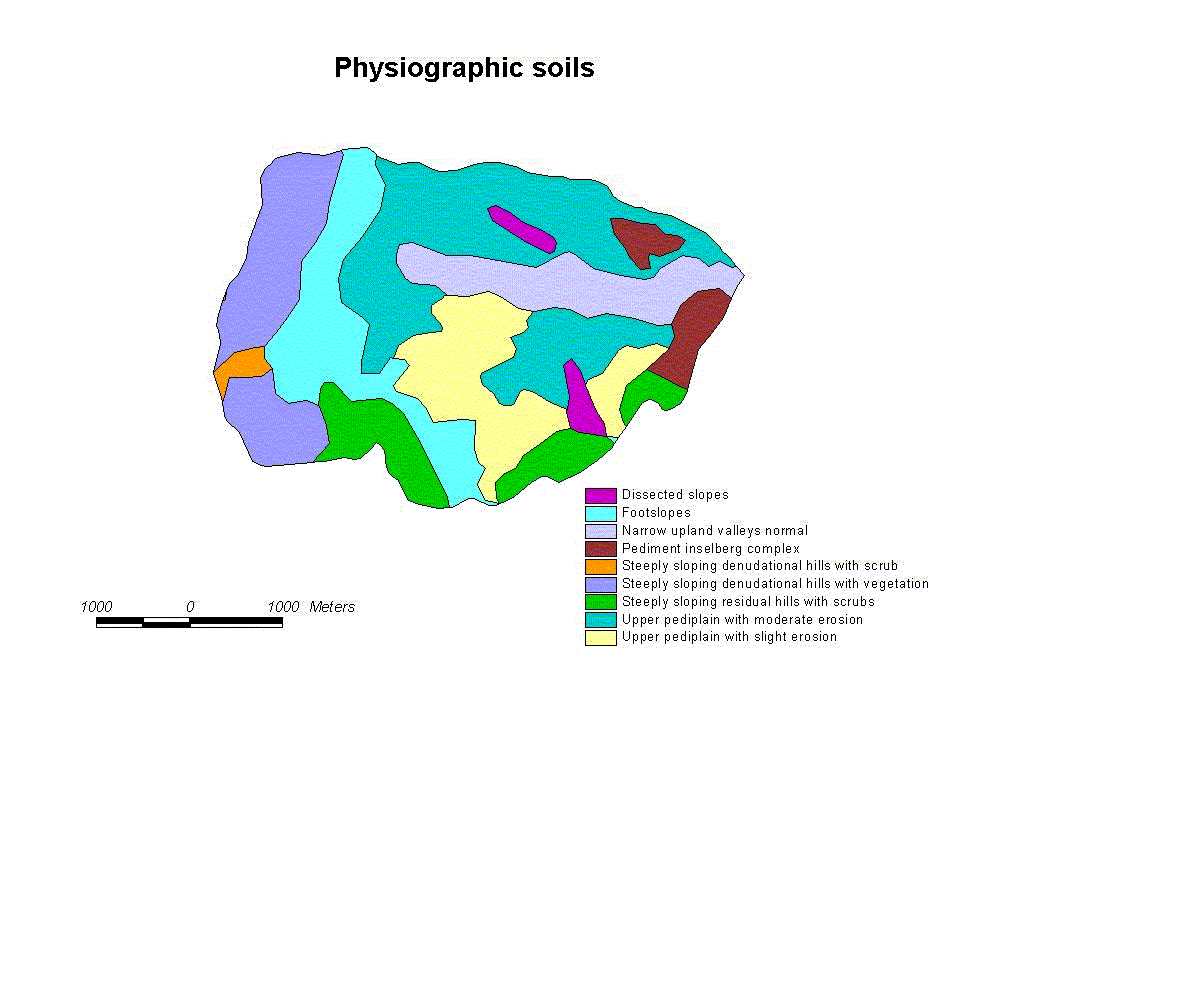

Ramapatna
watershed was chosen for several reasons: (1) there are problems with
land degradation, particularly gully erosion; (2) it has not been extensively
treated by GOI programs; (3) new meteorological and stream gauging
stations have been installed in Ramapatna within the past year, because
the area is being modelled for water conservation by CWRDMS/Calicut;
(4) the project team can communicate with local population in their
own language; (5) data with typical scales and depth of information
are available on various factors; (6) Bairasagara already falls under NWDPRA.
Although
the prototype SDSS is specific to the test area, the methodology is
designed to be applied to any area of India with local calibration.
3.5 User
Interface
The DSS
is proposed to present a simple, intuitive interface to the user, who
is presumed to be somewhat a novice to the use of computers and certainly
to GIS.
An ideal
interface is provided by ArcView: series of maps, complete with symbols
and attributes, called themes, may be collected in views, each having
a table of contents showing the themes. The user chooses which themes
to view by marking a check box. Simple tools to zoom in and out, and
to obtain information on map areas, are provided. User-level training
in the ArcView interface can be completed in a half day.
The DSS
will be presented as a series of views: (1) input maps and tables;
(2) derived maps; (3) ratings. These are collected in a single ArcView
project, which in addition should have many tools disabled, e.g. the
ability to add or delete themes or change the legend. These menus and
buttons can be replaced with a customized interface that allows the
end user to choose views. The Avenue manual (included with ArcView)
explains how to do this.
3.6 Future
development / Better service
NRDMS centres
are being set up in 27 districts in 10 Indian states, with complete
coverage planned for Karnataka. The decision-support service that can
be provided as of now meets the needs specified during the needs assessment.
As far as land evaluation is concerned, it is unsophisticated but it
is robust and functions with the data that are actually available in
every district in India.
With a better
database we can provide a better service and a program to upgrade the
database should begin with addition of the 10m contour data (which
are already held by the Survey of India) to the digitized topographic
sheets. Good use can also be made of the more recent, high definition
satellite imagery. Both will improve our ability to describe key data
both directly and through transfer functions. A cut-down version of
the Automated Land Evaluation Systems (ALES) can be bolted on to the
SDSS to provide land suitability evaluation for specific crops and
land use types; including basis financial/economic analysis.
Fieldwork
in Kolar District has identified falling water tables as a major concern.
This is attributed to extraction of water by tube well for irrigation.
It is desirable to prepare catchment maps of present land use and LUSA,
and water budgets for each land use types, paying special attention
to the apparent mismatch of flooded rice cultivation and soils of high
permeability.
Groundwater
of low salinity is being pumped from the fissured granite aquifer,
which has been severely depleted. This water is being applied to irrigated
crops and salinity is now apparent in the shallow water table and the
fields. Evidently, the shallow groundwater is not, or only weakly connected
with, the deeper, presumably confined aquifer.
The SDSS
will give useful spatial information on these emerging threats and
highlight the areas of inefficient water usage.
3.7 (Logical)
Database Design
Database
design forms a systematic description of the data and their relationships
that could form the basis of the development of a GIS. A few project
team members have undergone training on ‘GIS Design : Planning and
Implementation’ for 10 days in May 1998 at KSCST-Bangalore along with
the other NRDMS groups (Main Instructor : Prof H.W. Calkins, NCGIA,
Buffalo).
Database
design has been carried out and documented for each application. This
work involves the following requirement analysis, and used the methodology
described by Prof. Calkins:
- Application Description
- Data Flow Diagram
- GIS Function List
- Entity-Relationship Diagram
ER technique
is a graphical method of representing the objects (entities) of a database,
relationship between the entities and the attributes of entity and
relationship that should be captured in a database.
Database
design for NWDPRA Watershed selection, as an example, is depicted in
Appendix V.
3.8 Module
Description
This approach
helps one to describe the development of a module for any application
/ DSS, and explains the following :
- Data model : vector/raster
- Input requirement : maps
(polygon/line/point) and rational tables their codes, entities, attributes,
source of data, method to generate the map/table, determination of
attributes, etc.
- Processing : Derivation
of related attributes, maps using different physical models.
Module description
has been worked out and documented for each of the application. In
the SDSS/LUP model for conservation management aspects, the following
models/criteria have been used for different applications :
- Prioritization of watershed
: degree to which watershed satisfies the criteria of the NWDPRA
scheme.
- Sub-watershed prioritization
on the basis of :
- Soil erosion (on-site)
: Morgan’s model (Morgan et al, 1982 and 1984)
- Sedimentation (off-site)
: AISLUS (1991)
- Degraded lands for reclamation
: Extent and severity using remote sensing method
- Suitable sites for interventions
(check dams and percolation tanks) : Integrated Mission for Sustainable
Development (IMSD) criteria (IMSD, 1995).
3.9 Prototype Modelling and Preliminary Results
Initially,
The SDSS/LUP concepts were tested on conservation planning aspects
of watershed characterization (drainage and its stream order; slope
and watershed delineation); selecting the priority watersheds/sub-watersheds;
and identifying the suitable sites for infrastructures (check-dams
and percolation tanks). A prototype modeling and their preliminary
results on various applications / scenarios for prescriptive planning
was examined and presented below briefly.
3.9.1 Prototype
model
Automated
watershed characterisation, which includes determination of drainage
network, stream order, slope and watershed delineation was carried
out by using the GRID module of ARC/INFO.
Contours (Figure
16) and watershed boundary maps, generated from the SOI topographic
sheet of 1:25,000 scale, were scanned and vectorized and converted
to ARC/INFO coverages. These were edited and geo-referenced. TOPOGRID
is a surface interpolator that is highly optimised to produce a hydrologically
correct surface. The TOPOGRID command interpolated the surface using
all elevation inputs generating the DEM coverage and then clipped
the DEM (Figure 17) to the watershed
boundary coverage. This helped to ensure creation of a good surface
along the edge of the watershed.
Flow
accumulation grid was generated by the FLOWACCUMULATION function,
which computes the amount of water that flows into each cell from
all of the uphill cells. This was used to identify the drainage courses
by extracting those cells with the highest accumulated flow. Experiment
with various accumulation values to extract drainage networks with
different levels of detail was performed to obtain a close match
to the SOI natural drainage system. The final drainage network of
desired detail was created by choosing the appropriate number of
cells (volume values) and converted into coverage.
GRID
module was used to assign Stream Order values and/or unique ID’s
to the drainage network. FLOW DIRECTION determines the direction
in which the water flows out of a cell, by comparing the elevations
of the neighbouring cells. STREAMORDER function was used to assign
STRAHLER order codes to drainage network. It used both the DRAINAGE
NETWORK grid and the FLOW DIRECTION grid to assign the stream order
codes (Figure 18). Small
and undesirable first order streams were eliminated with the help
of Map Algebra.
For
Watershed Delineation, SNAPPOUR function in GRID module was used
to select the pourpoints in the flow accumulation grid. The WATERSHED
function created a grid of the watershed area above the pourpoint
from the outputs of SNAPPOUR and FLOWDIRECTION functions.
LATTICEPOLY
function in GRID module was used to generate the Slope of the watershed.
The surface created by TOPOGRID was the input for LATTICEPOLY function.
The slope map automatically generates a default look up table with
8 divisions of slope classes. However, the slope map of any desired
ranges can also be generated by creating a fresh look up table.
NWDPRA
criteria were used to identify the sites for priority watersheds
in two under-developed talukas in Kolar district. Mylar bases were
generated for the purpose include taluka boundary (1) for Chikballapur
and Gudibanda talukas; watersheds (2) of 50-100 km2 and rain gauge
stations (3) in and around the above talukas. Mylar bases were prepared
from SOI topographic sheets of 1:50,000 scale. The village map of
the talukas along with the attribute data (containing the details
of socio-economic and other physical data, including the irrigated
area) was converted into ARC/INFO coverage from MAPINFO files supplied
by the KSCST-Bangalore.
The mylar
bases were scanned, vectorized, transformed to ARC/INFO coverages
and finally edited and geo-referenced. The rain-gauge station map
was used to generate Thiessen polygon in EditTools by using THIESSEN
function under Proximity Analysis (Figure
19). Proportionate irrigated area of each watershed was calculated
from the village-irrigated area (Figure
20). Finally, the watersheds were prioritized based on NWDPRA
criteria (Figure 21). Prioritization
of NWDPRA watersheds was also carried out using the SC/ST population
in the watersheds (Figure 22),
in addition to the physical factors.
Prototype
modelling also includes generation of different scenarios for sub-watershed
prioritization in Ramapatna watershed. This is mainly to identify
the priority sites for different schemes based on different physical
factors : (1) on-site effects (soil erosion intensity), including
identifying the hot-spots for interventions (Morgan’s model); (2)
off-site/down-stream effects (sedimentation) and its critical sectors
(AISLUS Sediment Yield Index model); (3) extent of degraded lands
from remotely-sensed data for reclamation.
Multi-source
thematic maps of physiographic-soil (1:50000 scale map from KSRSUC,
Bangalore prepared for IMSD project) (Figure
23), landuse/cover (IRS-1C PAN remote sensing data at 1:125000
scale) (Figure 24) and sub-watersheds
of 500-650 ha (1:25000 SOI topomap) (Figure
25)were generated and were converted into ARC/INFO coverages
after scanning and vectorization. They were edited, geo-referenced,
overlayed to generate Bio-Physical Land Unit (BPLU) map (Figure
26). These BPLUs combinations (Appendix VI) were considered as
strategic natural units for sub-watershed prioritization.
Parameters
were derived as per the requirement of Morgan’s model and soil loss
was calculated in t/ha for each BPLU. Ranges (zones) were determined
to indicate low, moderate, severe and very severe erosion intensities.
These severe zones are the critical sectors (hot spots) for interventions.
Finally, the erosion values of all the BPLU’s in each sub-watershed
were aggregated and prioritized based on the total soil loss.
Similarly,
the gross sediment yield index values of each BPLU was calculated
using AISLUS’s SYI model and assigned the ranges to know about hot-spots
in the watershed. SYI values of each sub-watershed were calculated
and rated the sub-watershed to indicate the priority sites for preferential
treatments.
Degraded
culturable lands of gullied and open-scrub, were extracted from remote
sensing-based land use map. By overlaying the sub-watershed map in
ARC/INFO, areal extent of these wastelands (in per cent) was calculated
for each of the sub-watershed. Sub-watersheds were then prioritized
on the basis of extent of wastelands for reclamation schemes.
The IMSD
criteria were used to identify the sites for percolation tanks (water
resources infrastructure) and check-dams (small-scale conservation
infrastructure) in Ramapatna watershed.
The location
of percolation tanks depends on the slope, soil permeability, good
fracture development and in the micro-watersheds of 25-50 ha size.
System-generated slope and micro-watershed maps were used to select
the areas of less than 2.15 % slope and watersheds of 25-50 ha. Soil
units from the soil map were merged based on soil permeability classes
and extracted the moderate soil permeability class for the purpose.
Lineament map was generated from IRS PAN data, and converted as ARC/INFO
coverage after performing the standard procedure. Buffering of one-third
size of the each of the lineament was done by using BUFFER command
in ArcEdit. The area inside the buffer zone was considered as the
suitable site. All the above derived maps were overlayed and the
suitable zones for constructing the percolation tanks were identified
in the watershed.
DSS on
site selection for check-dams in the watershed to be built or authorized
by the Government is in progress. In general, check-dams are constructed
on lower order streams with medium slopes. They are proposed where
water-table fluctuation is very high and the stream is influent /
intermittently effluent. The catchment areas vary widely, but an
average area of about 25 ha should be there. The parameters to be
considered are slope, soil cover and its thickness and hydrogeological
conditions of rock type, thickness of weathered strata, fracture,
depth to the bedrock. There should be some irrigation wells in the
down-stream of the proposed structure.
3.9.2 Preliminary
results
- Watershed characterization
DSS : Slope map generated by ARC/INFO with default slope categories
matches well with the general topography of the area (Figure
27) Drainage network generated in GRID module with the input
of contour and watershed boundary maps of Ramapatna Watershed,
closely resembles the natural drainage network appear in the SOI
toposheet. However, system-generated drainage network has more
first-order streams than the SOI topographic sheet. Hence, the
stream order derived from the system-generated drainage network
does not match with the stream order derived from the drainage
network of toposheet. Automated watershed delineation is possible
through ARC/INFO (Figure 28),
and closely matches with the manual delineation from the topomap.
However, the map should be converted into coverage and merge the
watersheds according to the size required for different schemes
(eg. 500-650 ha for various watershed/conservation management schemes).
- Watershed prioritization,
on the basis of NWDPRA criteria : Out of the ten watersheds delineated
in and around Gudibanda and Chikballapur talukas, four fall within
the talukas and the priority ratings according to the NWDPRA criteria
were : Bairasagara, Peresandra, Chonduru and Chalamenahalli (Figure
21). Whereas, the prority ratings on the basis of poverty (SC/ST
population) were : Chonduru, Bairasagara, Chalamenahalli, and Peresandra (Figure
22).
- Priority sub-watershed
ratings on the basis soil erosion intensity (Figure
29), sediment yield (Figure
30) and degraded lands (Figure
31) are depicted below (Table 3):
Table
3. Scenarios / Multi-criteria evaluation
NWDPRA Catchment |
Priority
rating |
Physical
Characteristics |
Socio-economic
characteristics |
Bairasagara |
1 |
2 |
Chalamena Halli |
4 |
3 |
Chonduru |
3 |
1 |
Peresandra |
2 |
4 |
Sub-catchment
|
Priority
rating |
Soil
erosion intensity |
Sediment
Yield Index |
Extent
of degraded lands |
RP_E |
3 |
1 |
2 |
RP_N |
1 |
2 |
3 |
RP_W |
2 |
3 |
1 |
The user
departments involved in various watershed/conservation management
programmes can choose the above sites of watersheds/sub-watersheds
on priority basis depending up on the above physical/socio-economic
problems.
- Water resource infrastructure
: A suitable zone for constructing the percolation tanks in Ramapatna
watershed was carried out using the IMSD criteria (Figure 32).
However, the exact location of this water resource infrastructure
is possible only after the filed investigations/verifications.
- Land use sustainability
assessment : An attempt has been made to verify/match the rice
cultivation on right/suitable type of soils for sustained groundwater
use. Knowledge-bases were generated after following the criteria
of the location of soil series from the soils units (associations)
supplied by the KSRSUC, Bangalore. Knowledge-bases were generated
from three maps : landuse/cover (rice cropping areas); geomorphology;
and slopes. However, we failed to develop the transfer function/model
to map soil series from the small-scale soil map. This requires
a specialized training/exposure.
- References
AISLUS
(1991). Methodology of priority delineation survey. All India Soil
and Land Use Survey, Department of Agriculture & Co-operation,
Ministry of Agriculture, Government of India. New Delhi.
Dent
D .L. and A. Young 1981 Soil survey and land evaluation. George Allen
and Unwin, London.
FAO 1976
Framework for land evaluation. Soils Bull. 32, Rome.
FAO 1985
Guidelines: land evaluation for irrigated agriculture. Soils
Bull. 55,Rome.
IMSD
(1995). Integrated Mission for Sustainable Development, Technical
Guidelines. National Remote Sensing Agency, Department of Space,
Government of India, Hyderabad.
Janssen,
R. and M. van Herwijnen 1992 DEFINITE: Decisions on a finite set
of alternatives. Kluwer Academic Publishers, Dordrecht.
Klingebiel
A.A. and P.H. Montgomery 1961 Land capability classification. U S
Dept Ag. Hbk 210, Washington DC.
Morgan,
R. P. C., D. D. V. Morgan, & Finney, H.J. (1984). A predictive
model for the assessment of soil erosion risk. Journal of Agricultural
Engineering Research 30: 245-253. Reprinted as pp.251-259 in:
Morgan, R. P. C. (ed.) Soil erosion and its control. New York,
Van Nostrand Reinhold.
Morgan,
R.P.C., Hatch, T and Wan Suleiman, Wan Harun. (1982). A simple procedure
for assessing soil erosion risk; a case study for Malaysia. Zeitschrift
fur Geomorphologie N.F. Suppl-Bd. 44: 69-89.
NBSS & LUP
1989 Agro-ecological zones of India ICIAR, Delhi.
National
Land Use & Conservation Board 1991 National consultation on perspective
plan for conservation, management and development of land resources
of the country, October 21-24, New Delhi. Discussion Paper. Min.
of Agriculture, Dep. of Agriculture & Cooperation, New Delhi.
Rossiter
D.G. and A. van Wambeke 1997 ALES Version 4, Users’ Manual. SCAC
Teaching Series T93-2. Soil, Crop and Atmospheric Sciences Dept,
Cornell Univ., Ithaca NY.
Shaxson,
T.F. 1981 Determining erosion hazard and land use incapability: a
rapid subtractive method. Soil Survey and Land Evaluation 1,3, 44-50.
Smith
C., R. Thwaites and G. McDonald 1999 TIM : evaluating the sustainability
of agricultural land management at the planning stage. The Land 3,1,
21-38.
Venkatachalam
P., B.K. Mohan and S. Shekhar 1998 GRAM++ Design Document (version
2.0). UNDP (GIS based Technologies for Local Level Development Planning
) / DST, Govt. of India (Development of GRAM for Windows), CSRE,
IIT-Bombay.
Wischmeier,
W. H. and D. D. Smith (1978). Predicting rainfall erosion losses
- a guide to conservation planning. Washington, DC, US Government
Printing Office.
|
